E061M24X2.0D7NO1
E061M24X2.0D7NO1

E061M24X2.0D7NO1

UGC DOR8765029
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.03 CAD - $133.03 CAD
$133.03 CAD
$133.03 CAD - $133.03 CAD
$133.03 CAD

Vendu en lots de : 1

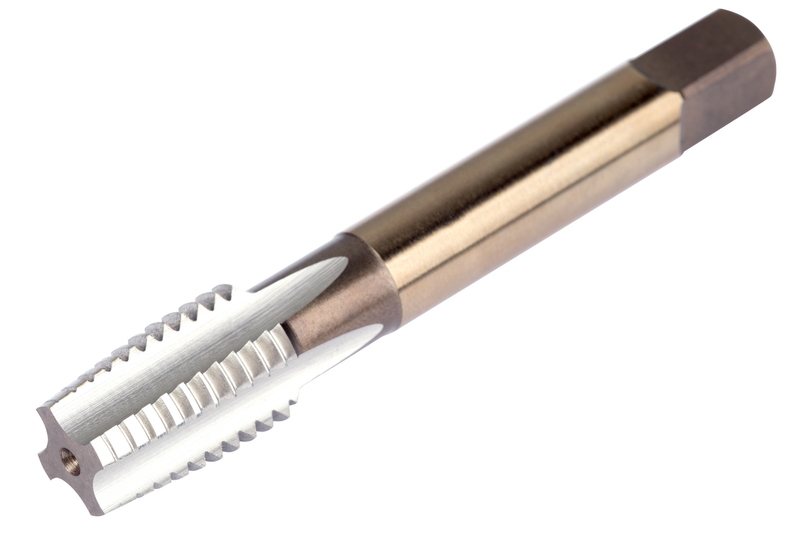

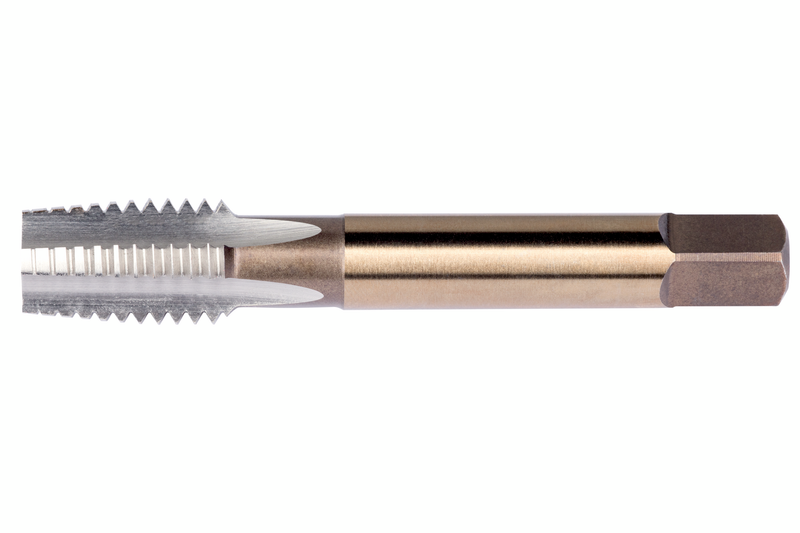

Taraud, machine, M24x2.00 mm D7, finition brillante HSS selon la norme ANSI pour acier au carbone moyen, acier allié à résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M24X2.0D7NO1
Product Number8765029
Product FamilyE061NO1(MF)
Dimensions
Overall Length — in (OAL)4.9063"
Overall Length — mm (OAL)124.62 mm
Usable Length — in (LU)2.205"
Usable Length — mm (LU)56.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)19.3 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765029
EAN3603607200575
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M24X2.0D7NO1 — Line Drawing PDF Download
