E061M20X1.5NON2
E061M20X1.5NON2

E061M20X1.5NON2

UGC DOR8765036
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.69 CAD - $104.69 CAD
$104.69 CAD
$104.69 CAD - $104.69 CAD
$104.69 CAD

Vendu en lots de : 1

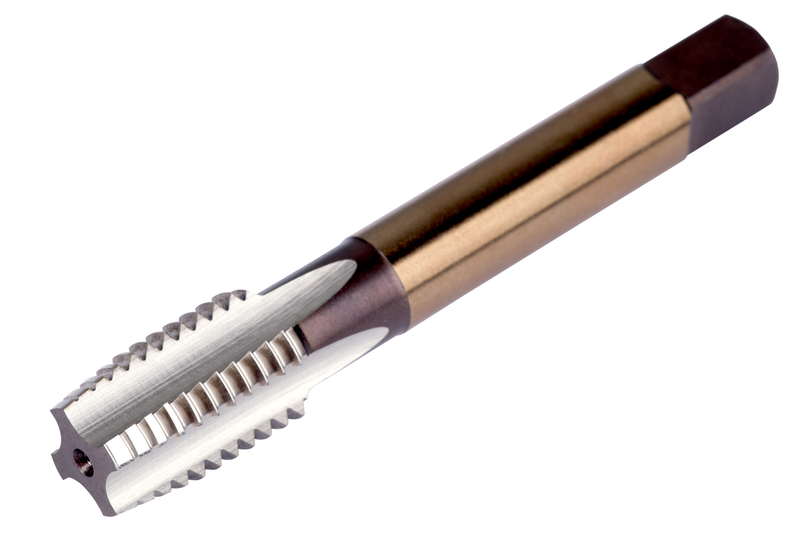

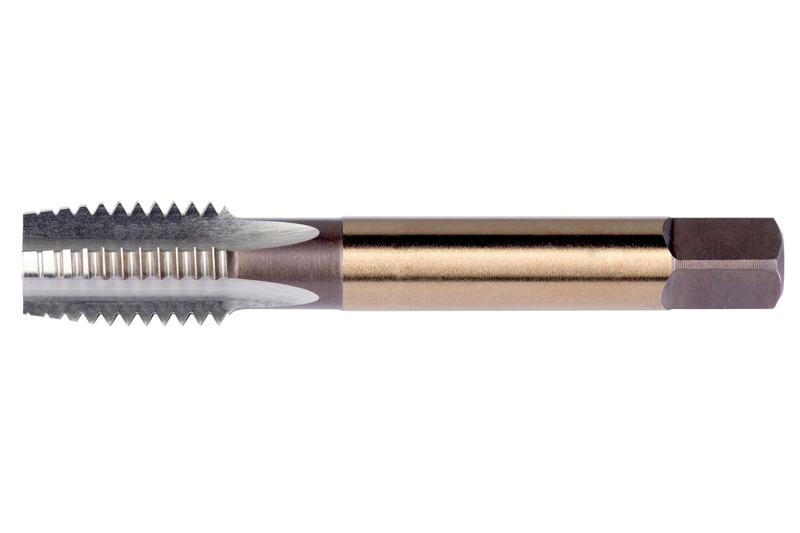

Taraud de fond, M20x1,50 mm D6, finition brillante HSS conforme à la norme ANSI pour acier au carbone, allié et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M20X1.5NON2
Product Number8765036
Product FamilyE061NO2(MF)
Dimensions
Overall Length — in (OAL)4.4688"
Overall Length — mm (OAL)113.51 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.56 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765036
EAN3603607200643
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M20X1.5NON2 — Line Drawing PDF Download
