E061M22X1.5D6NO3
E061M22X1.5D6NO3

E061M22X1.5D6NO3

UGC DOR8765046
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.51 CAD - $106.51 CAD
$106.51 CAD
$106.51 CAD - $106.51 CAD
$106.51 CAD

Vendu en lots de : 1

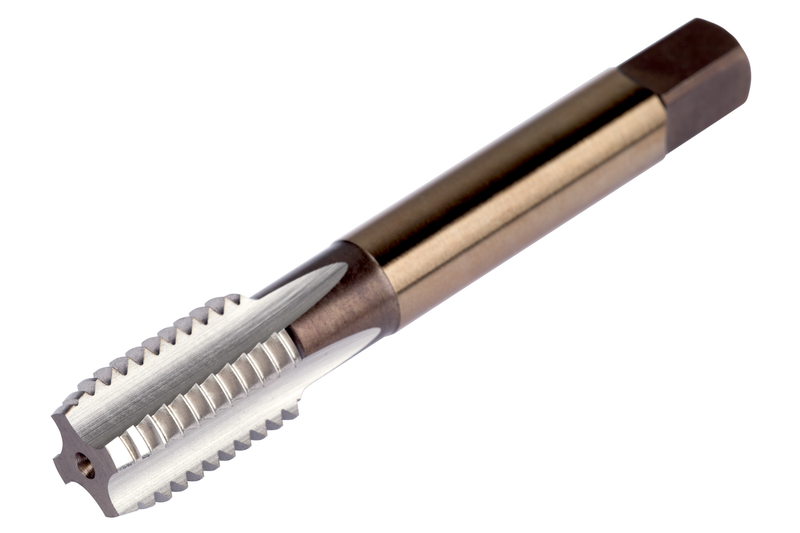

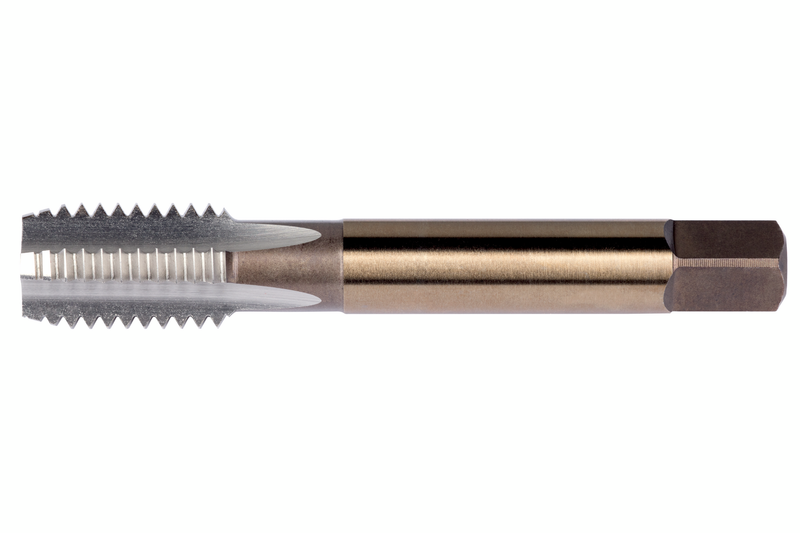

Taraud machine semi-finisseur pour trou débouchant, M22x1,50 mm D6, HSS finition brillante, selon la norme ANSI pour acier allié, au carbone et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M22X1.5D6NO3
Product Number8765046
Product FamilyE061NO3(MF)
Dimensions
Overall Length — in (OAL)4.6875"
Overall Length — mm (OAL)119.06 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765046
EAN3603607200742
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M22X1.5D6NO3 — Line Drawing PDF Download
