E061M10X1.25NON6
E061M10X1.25NON6

E061M10X1.25NON6

UGC DOR8765049
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.97 CAD - $74.97 CAD
$74.97 CAD
$74.97 CAD - $74.97 CAD
$74.97 CAD

Vendu en lots de : 1

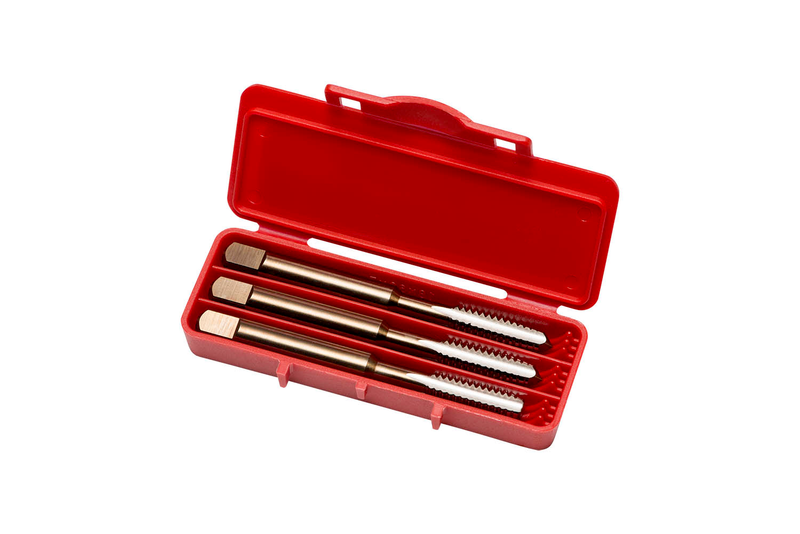

Jeu de 3 tarauds à main avec entrée conique, d'ébauche et semi-finition, M10x1,25 mm D5, finition brillante HSS selon la norme ANSI pour acier allié, au carbone et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M10X1.25NO6
Product Number8765049
Product FamilyE061NO6(MF)
Dimensions
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Usable Length — in (LU)1.472"
Usable Length — mm (LU)37.4 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765049
EAN3603607200773
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M10X1.25NON6 — Line Drawing PDF Download
