E061M12X1.25NO6
E061M12X1.25NO6

E061M12X1.25NO6

UGC DOR8765050
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.60 CAD - $89.60 CAD
$89.60 CAD
$89.60 CAD - $89.60 CAD
$89.60 CAD

Vendu en lots de : 1

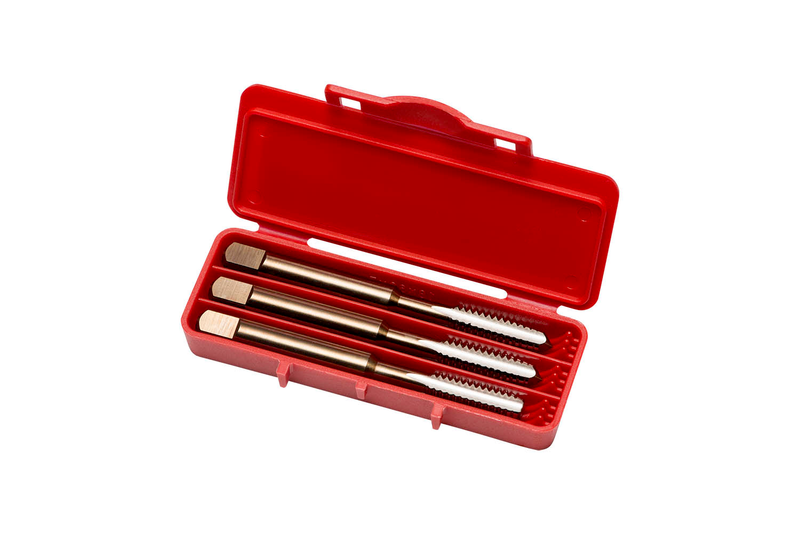

Jeu de 3 tarauds à main avec entrées conique, ébaucheur et finisseur, M12x1,25 mm D5, finition brillante HSS selon la norme ANSI pour acier mi-dur, à teneur moyenne en carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M12X1.25NO6
Product Number8765050
Product FamilyE061NO6(MF)
Dimensions
Overall Length — in (OAL)3.375"
Overall Length — mm (OAL)85.73 mm
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765050
EAN3603607200780
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M12X1.25NO6 — Line Drawing PDF Download
