E061M16X1.5D6NO6
E061M16X1.5D6NO6

E061M16X1.5D6NO6

UGC DOR8765052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$163.20 CAD - $163.20 CAD
$163.20 CAD
$163.20 CAD - $163.20 CAD
$163.20 CAD

Vendu en lots de : 1

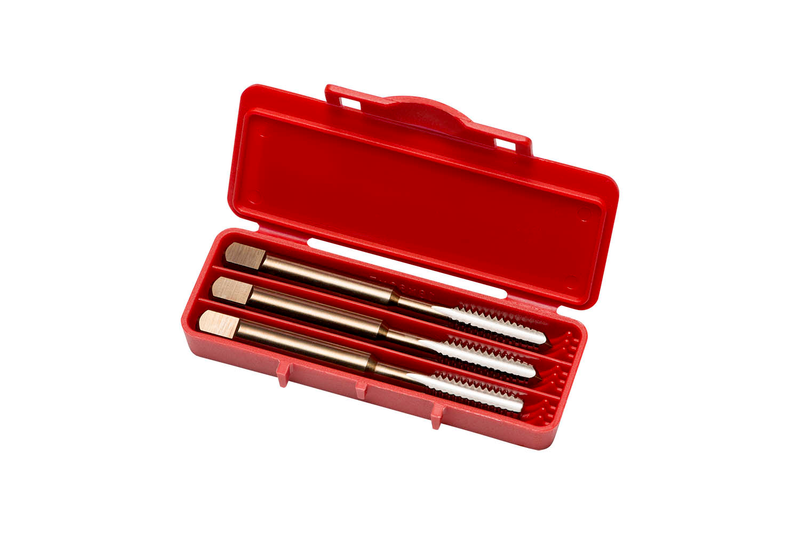

Jeu de 3 tarauds à main ébaucheur, semi-finisseur et finisseur, M16x1.50 mm D6, finition brillante HSS selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M16X1.5D6NO6
Product Number8765052
Product FamilyE061NO6(MF)
Dimensions
Overall Length — in (OAL)3.8125"
Overall Length — mm (OAL)96.84 mm
Usable Length — in (LU)1.614"
Usable Length — mm (LU)41.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.19 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765052
EAN3603607200803
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M16X1.5D6NO6 — Line Drawing PDF Download
