E061M22X1.5D6NO6
E061M22X1.5D6NO6

E061M22X1.5D6NO6

UGC DOR8765055
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$310.86 CAD - $310.86 CAD
$310.86 CAD
$310.86 CAD - $310.86 CAD
$310.86 CAD

Vendu en lots de : 1

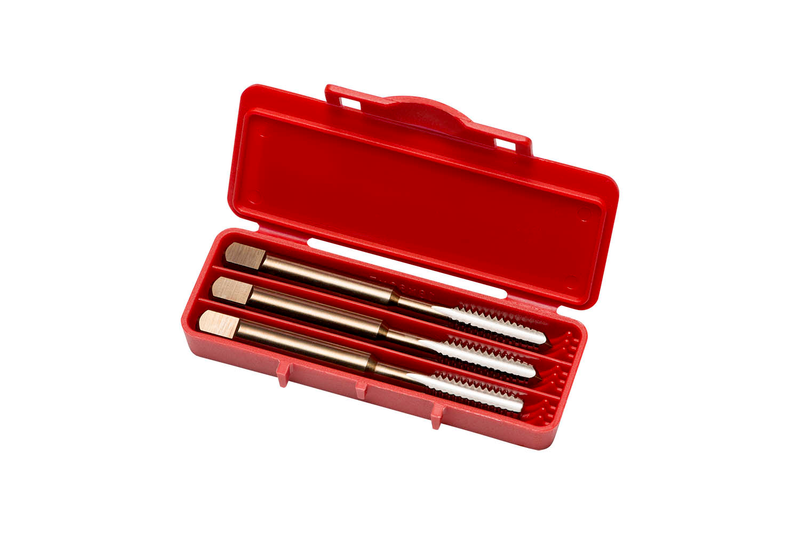

Jeu de 3 tarauds à main à entrée conique, intermédiaire et de finition, M22x1,50 mm D6, finition brillante HSS conforme à la norme ANSI pour les aciers de résistance moyenne, les aciers au carbone moyens et les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E061M22X1.5D6NO6
Product Number8765055
Product FamilyE061NO6(MF)
Dimensions
Overall Length — in (OAL)4.6875"
Overall Length — mm (OAL)119.06 mm
Usable Length — in (LU)1.969"
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765055
EAN3603607200834
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E061M22X1.5D6NO6 — Line Drawing PDF Download
