E0631/4X20H3NO2
E0631/4X20H3NO2

E0631/4X20H3NO2

UGC DOR8765077
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.37 CAD - $9.37 CAD
$9.37 CAD
$9.37 CAD - $9.37 CAD
$9.37 CAD

Vendu en lots de : 1

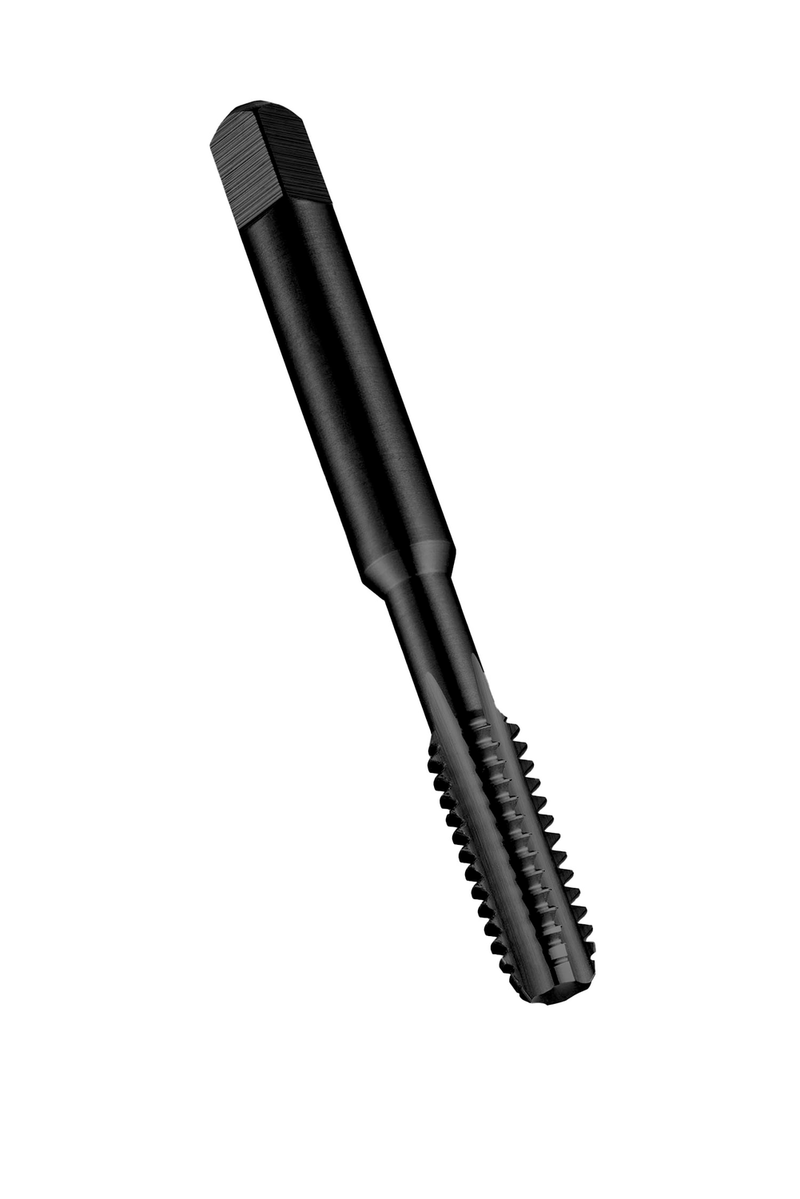

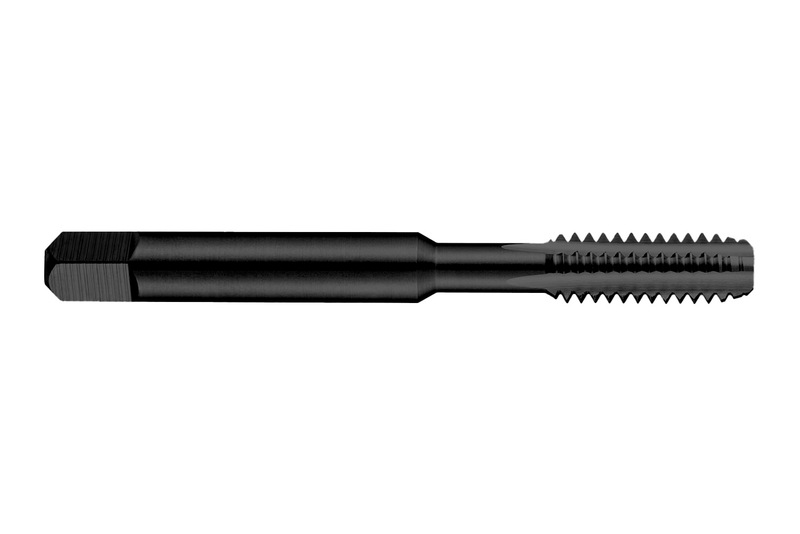

Taraud main d'entrée, 1/4-20 UNC H3, finition trempe vapeur HSS selon norme ANSI pour acier au carbone et allié de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0631/4X20H3NO2
Product Number8765077
Product FamilyE063NO2 (non classifié)
Dimensions
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — in (LU)1.142"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765077
EAN3603607201053
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0631/4X20H3NO2 — Line Drawing PDF Download
