E0633/8X16H3NO2
E0633/8X16H3NO2

E0633/8X16H3NO2

UGC DOR8765079
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.84 CAD - $12.84 CAD
$12.84 CAD
$12.84 CAD - $12.84 CAD
$12.84 CAD

Vendu en lots de : 1

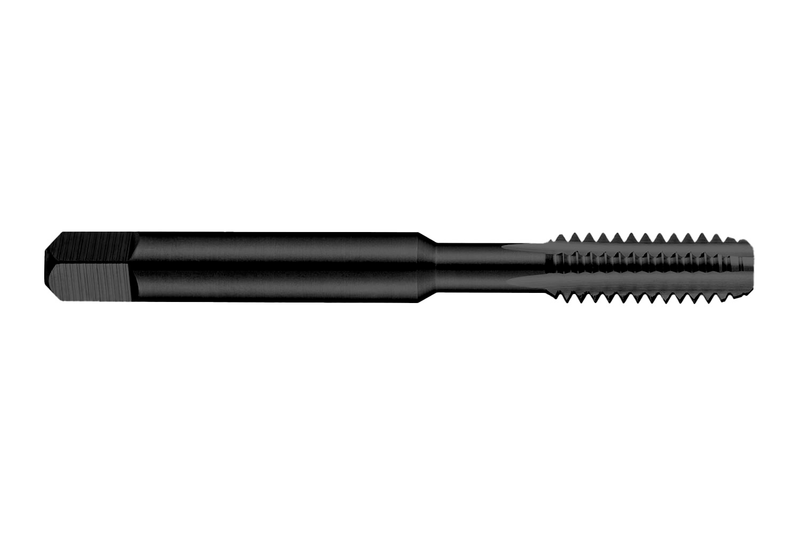

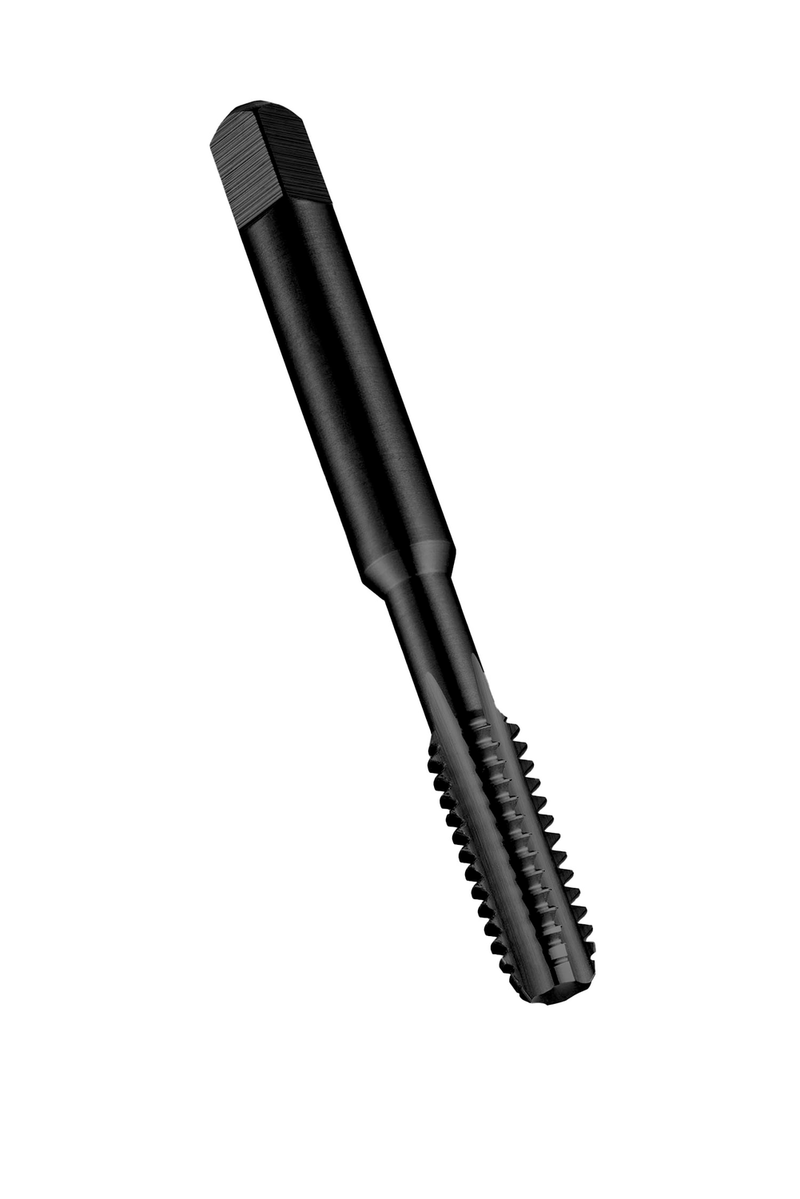

Taraud main d'ébauche, 3/8-16 UNC H3, finition trempe à la vapeur, HSS selon norme ANSI pour aciers de résistance moyenne, aciers au carbone moyen et aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0633/8X16H3NO2
Product Number8765079
Product FamilyE063NO2 (ONU)
Dimensions
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Usable Length — in (LU)1.472"
Usable Length — mm (LU)37.4 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765079
EAN3603607201077
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
File Type Download
E0633/8X16H3NO2 — Line Drawing PDF Download
