E0637/16X14H3NO2
E0637/16X14H3NO2

E0637/16X14H3NO2

UGC DOR8765080
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.03 CAD - $22.03 CAD
$22.03 CAD
$22.03 CAD - $22.03 CAD
$22.03 CAD

Vendu en lots de : 1

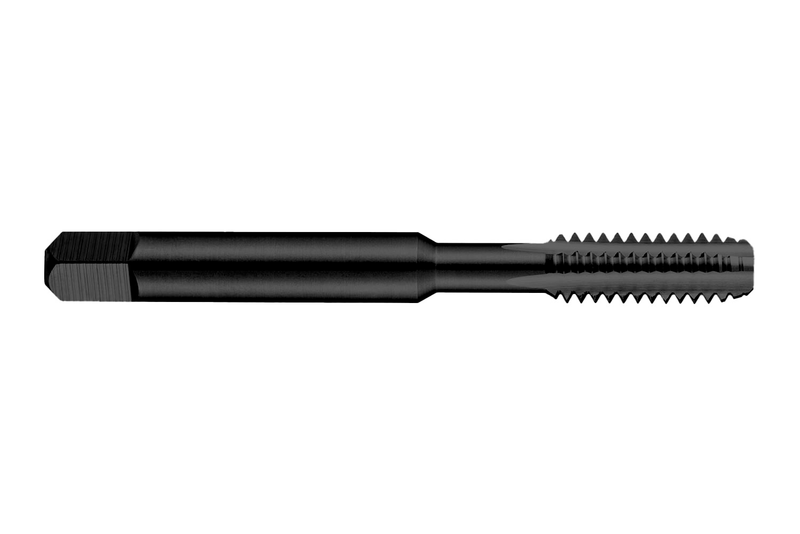

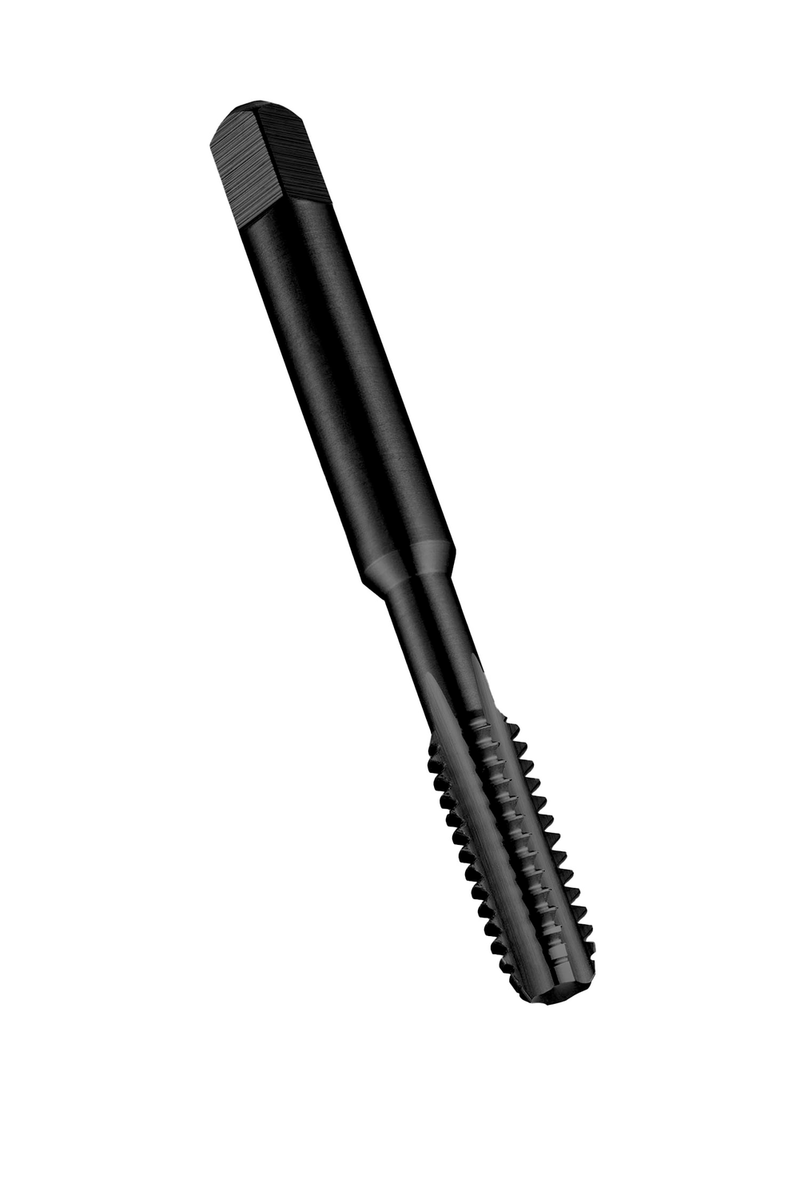

Taraud main d'entrée, 7/16-14 UNC H3, finition recuite à la vapeur HSS selon la norme ANSI pour acier mi-doux, mi-carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0637/16X14H3NO2
Product Number8765080
Product FamilyE063NO2 (non classifié)
Dimensions
Overall Length — in (OAL)3.1563"
Overall Length — mm (OAL)80.17 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.2 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765080
EAN3603607201084
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
File Type Download
E0637/16X14H3NO2 — Line Drawing PDF Download
