E0639/16X12H3NO2
E0639/16X12H3NO2

E0639/16X12H3NO2

UGC DOR8765082
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.00 CAD - $39.00 CAD
$39.00 CAD
$39.00 CAD - $39.00 CAD
$39.00 CAD

Vendu en lots de : 1

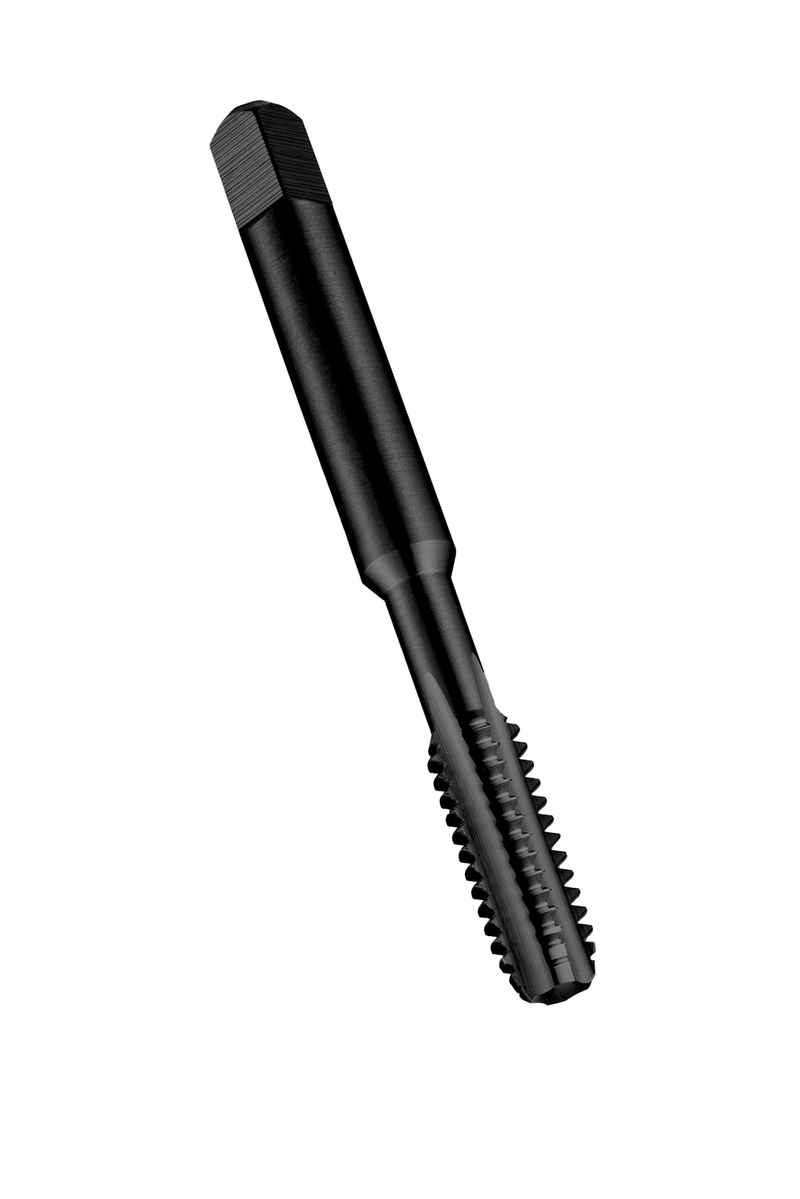

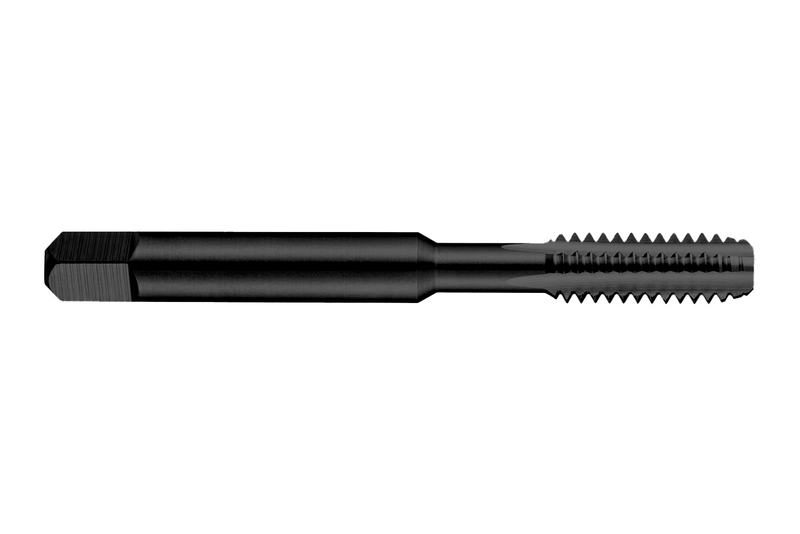

Taraud main d'ébauche, 9/16-12 UNC H3, finition trempée à la vapeur en HSS selon la norme ANSI pour acier allié, au carbone et à moyenne résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0639/16X12H3NO2
Product Number8765082
Product FamilyE063NO2 (UNC)
Dimensions
Overall Length — in (OAL)3.5938"
Overall Length — mm (OAL)91.28 mm
Usable Length — in (LU)1.575"
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)10.9 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765082
EAN3603607201107
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0639/16X12H3NO2 — Line Drawing PDF Download
