E0635/8X11H3NO2
E0635/8X11H3NO2

E0635/8X11H3NO2

UGC DOR8765083
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.09 CAD - $47.09 CAD
$47.09 CAD
$47.09 CAD - $47.09 CAD
$47.09 CAD

Vendu en lots de : 1

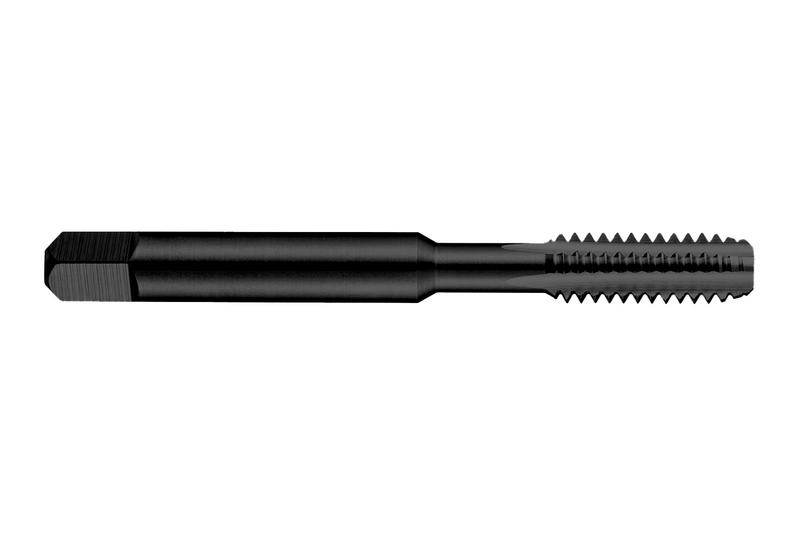

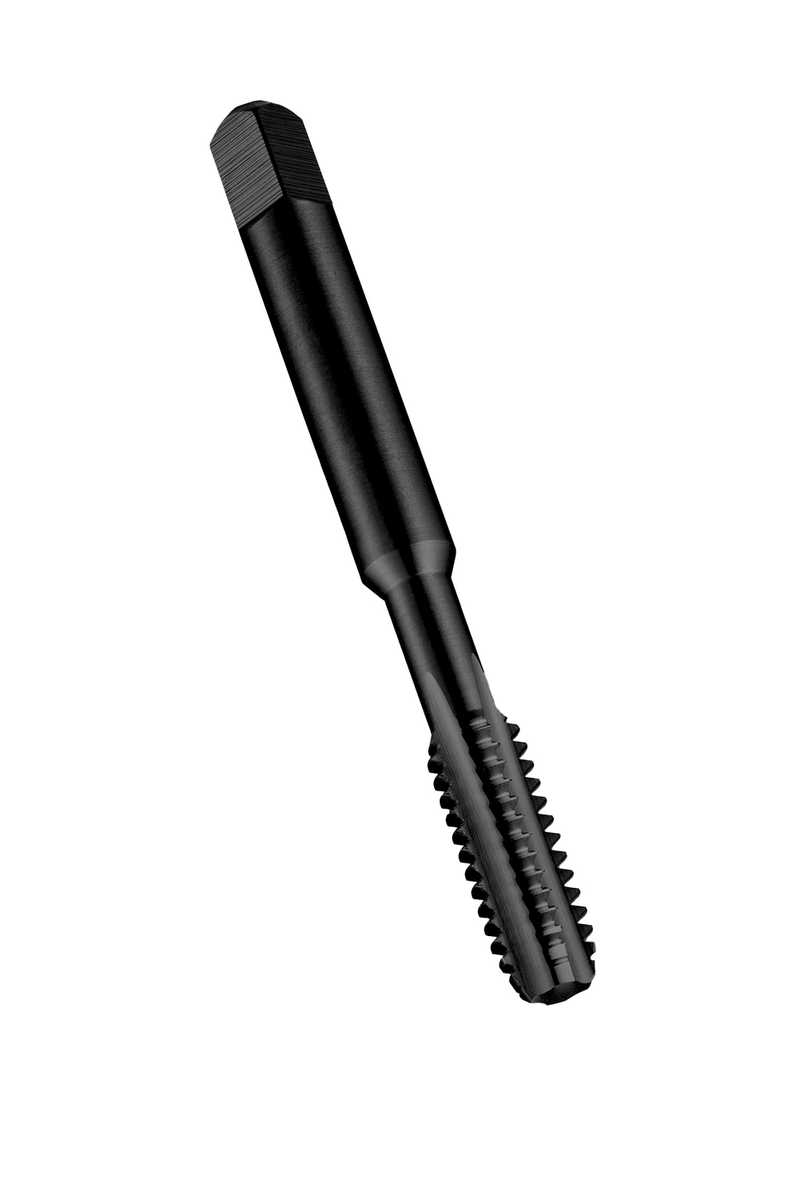

Taraud main d’amorce, 5/8-11 UNC H3, finition vapeur HSS selon la norme ANSI pour acier mi-dur, acier au carbone moyen et acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0635/8X11H3NO2
Product Number8765083
Product FamilyE063NO2(RUNC)
Dimensions
Overall Length — in (OAL)3.8125"
Overall Length — mm (OAL)96.84 mm
Usable Length — in (LU)1.614"
Usable Length — mm (LU)41.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.19 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765083
EAN3603607201114
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0635/8X11H3NO2 — Line Drawing PDF Download
