E0633/4X10H3NO2
E0633/4X10H3NO2

E0633/4X10H3NO2

UGC DOR8765084
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.29 CAD - $66.29 CAD
$66.29 CAD
$66.29 CAD - $66.29 CAD
$66.29 CAD

Vendu en lots de : 1

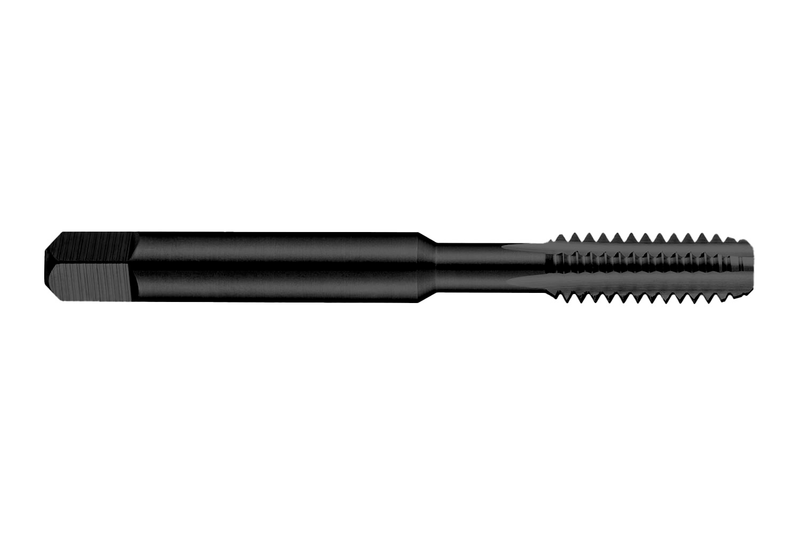

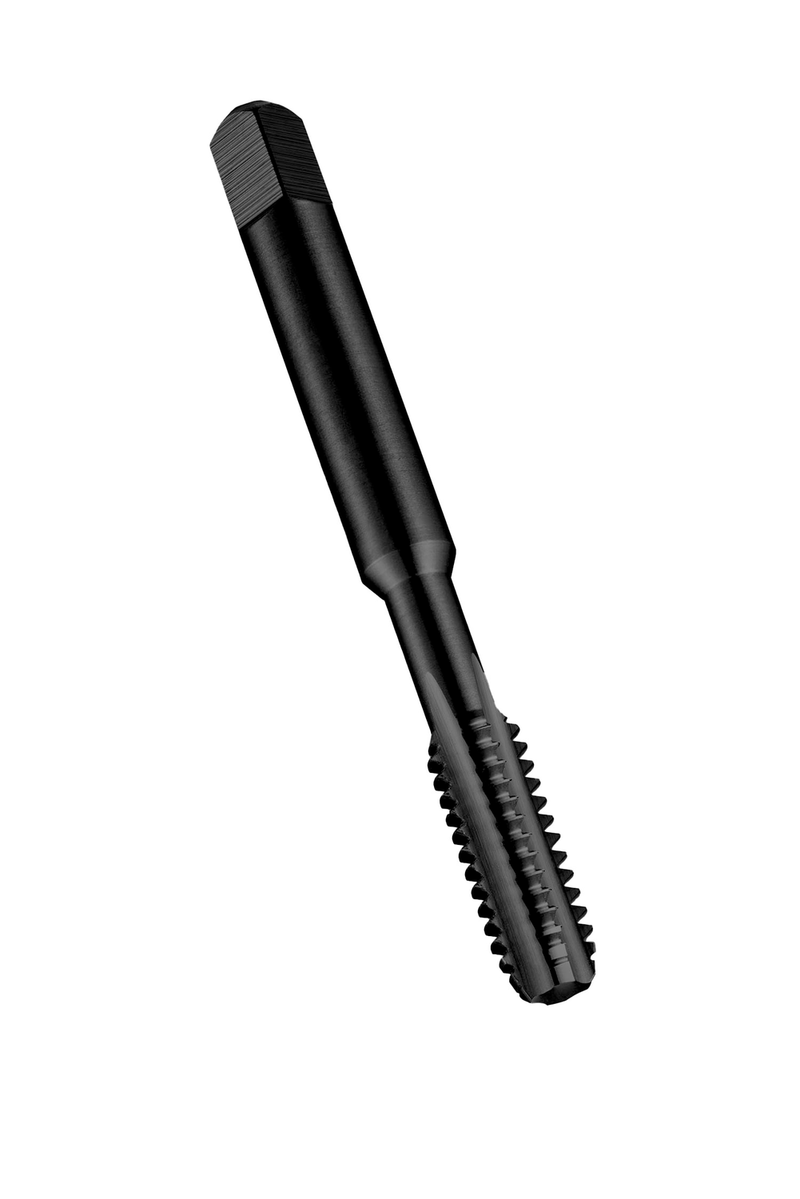

Taraud main d'ébauche, 3/4-10 UNC H3, finition à la vapeur HSS selon la norme ANSI pour acier de moyenne résistance, à carbone moyen et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0633/4X10H3NO2
Product Number8765084
Product FamilyE063NO2(NU)
Dimensions
Overall Length — in (OAL)4.25"
Overall Length — mm (OAL)107.95 mm
Usable Length — in (LU)1.85"
Usable Length — mm (LU)47.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)14.99 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765084
EAN3603607201121
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0633/4X10H3NO2 — Line Drawing PDF Download
