E0631X8H4NO2
E0631X8H4NO2

E0631X8H4NO2

UGC DOR8765086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.17 CAD - $126.17 CAD
$126.17 CAD
$126.17 CAD - $126.17 CAD
$126.17 CAD

Vendu en lots de : 1

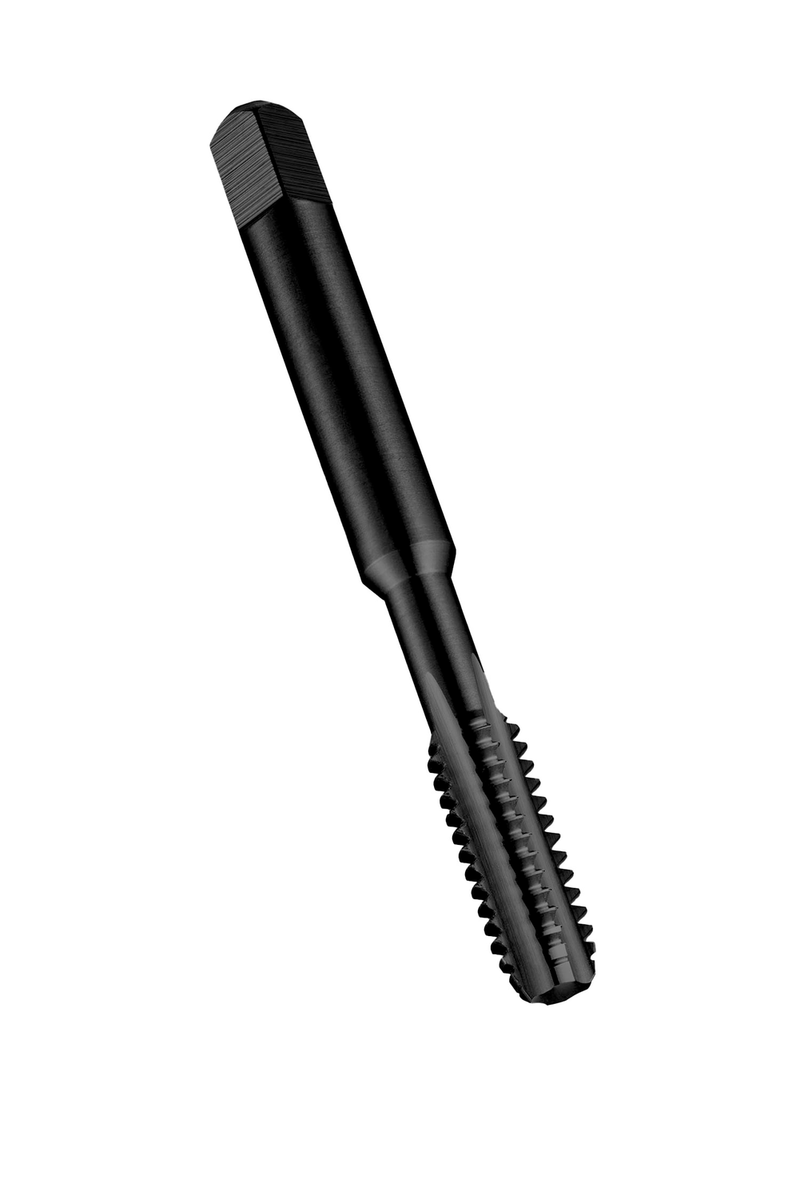

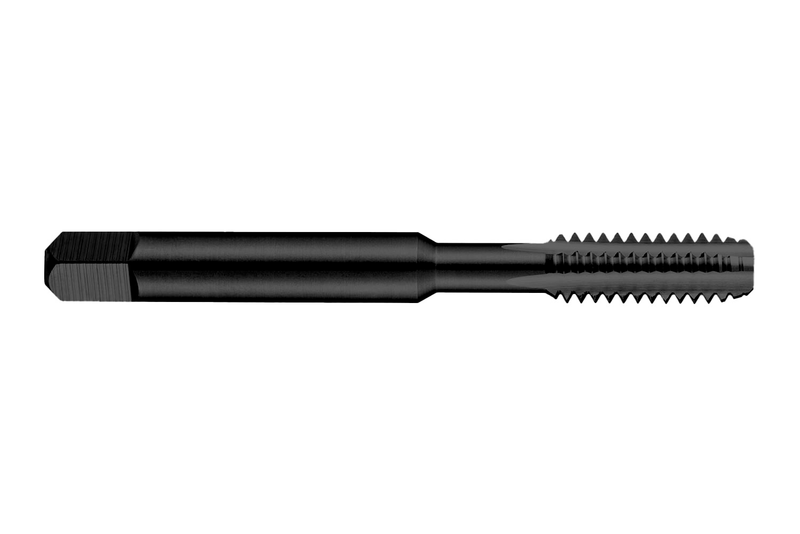

Taraud main d'ébauche, 1-8 UNC H4, finition trempée vapeur HSS selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0631X8H4NO2
Product Number8765086
Product FamilyE063NO2 (UNC)
Dimensions
Overall Length — in (OAL)5.125"
Overall Length — mm (OAL)130.18 mm
Usable Length — in (LU)2.205"
Usable Length — mm (LU)56.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)20.32 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765086
EAN3603607201145
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0631X8H4NO2 — Line Drawing PDF Download
