E0671/2X13H3NO3
E0671/2X13H3NO3

E0671/2X13H3NO3

UGC DOR8765095
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.46 CAD - $64.46 CAD
$64.46 CAD
$64.46 CAD - $64.46 CAD
$64.46 CAD

Vendu en lots de : 1

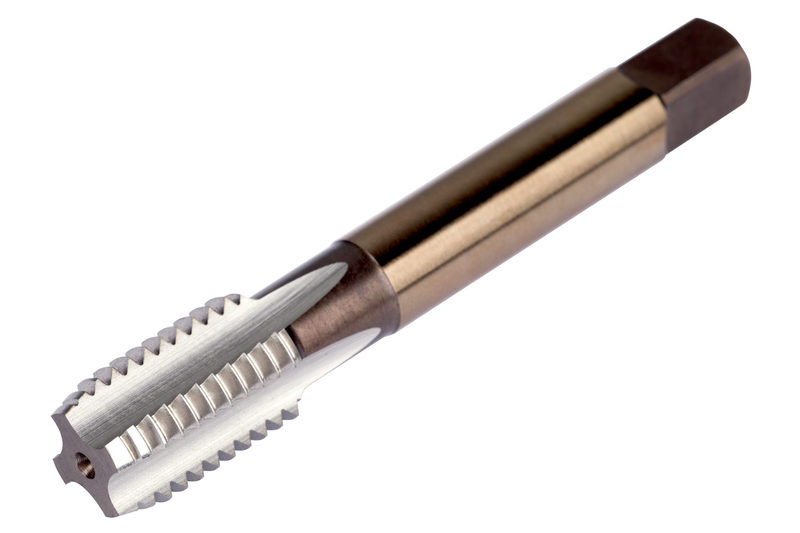

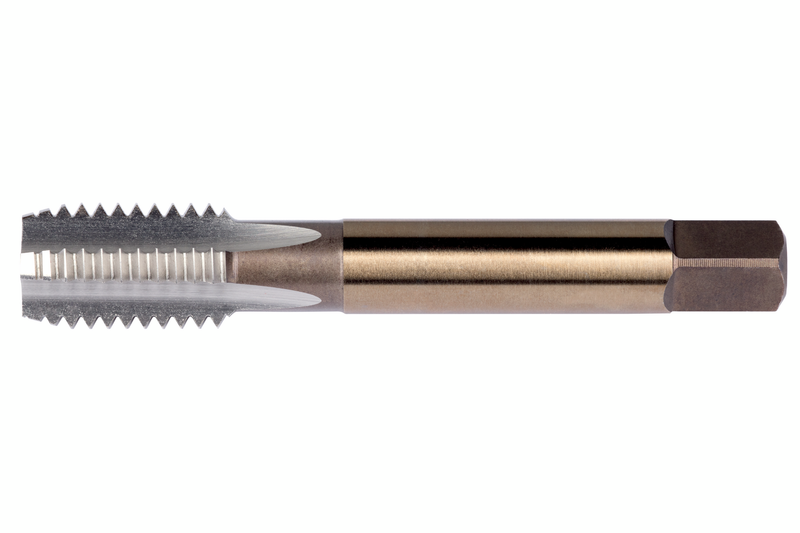

Taraud de finition semi-intermédiaire à main pour filetage d'insert de vis 1/2-13 UNC H3, finition brillante HSS selon la norme ANSI pour acier à résistance moyenne, à teneur moyenne en carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0671/2X13H3NO3
Product Number8765095
Product FamilyE067NO3(STI-UNC)
Dimensions
Overall Length — in (OAL)3.8125"
Overall Length — mm (OAL)96.84 mm
Usable Length — in (LU)2.165"
Usable Length — mm (LU)55.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.19 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765095
EAN3603607201237
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage possible
File Type Download
E0671/2X13H3NO3 — Line Drawing PDF Download
