E0681/4X20X6NO2
E0681/4X20X6NO2

E0681/4X20X6NO2

UGC DOR8765100
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.86 CAD - $86.86 CAD
$86.86 CAD
$86.86 CAD - $86.86 CAD
$86.86 CAD

Vendu en lots de : 1

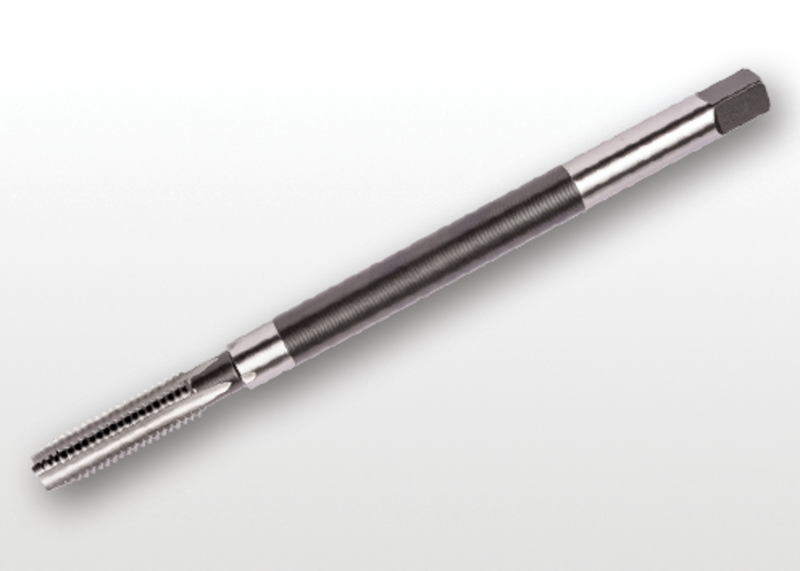

Taraud à main à poulie, longueur totale 6", n° 1/4-20 UNC H3, finition brillante HSS conforme à la norme ANSI pour acier allié, au carbone et de résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI)E0681/4X20X6NON2
Product Name (ISO)E0681/4X20X6NO2
Product Number8765100
Product FamilyE068NO2(NCU)
Dimensions
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Usable Length — in (LU)1.142"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765100
EAN3603607201282
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Usage possible
File Type Download
E0681/4X20X6NO2 — Line Drawing PDF Download
