E0681/4X20X8NO2
E0681/4X20X8NO2

E0681/4X20X8NO2

UGC DOR8765101
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.71 CAD - $109.71 CAD
$109.71 CAD
$109.71 CAD - $109.71 CAD
$109.71 CAD

Vendu en lots de : 1

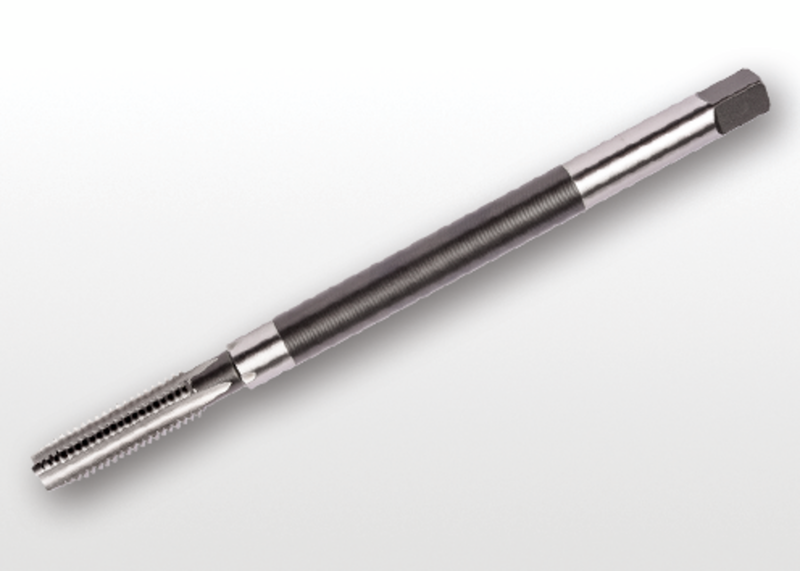

Taraud à main à goupille long de 8 po, No. 1/4-20 UNC H3, finition brillante HSS conforme à la norme ANSI pour acier de moyenne résistance, à teneur moyenne en carbone et allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0681/4X20X8NO2
Product Number8765101
Product FamilyE068NO2(CNU)
Dimensions
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Usable Length — in (LU)1.142"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765101
EAN3603607201299
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0681/4X20X8NO2 — Line Drawing PDF Download
