E0685/16X18X6NO2
E0685/16X18X6NO2

E0685/16X18X6NO2

UGC DOR8765102
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.14 CAD - $89.14 CAD
$89.14 CAD
$89.14 CAD - $89.14 CAD
$89.14 CAD

Vendu en lots de : 1

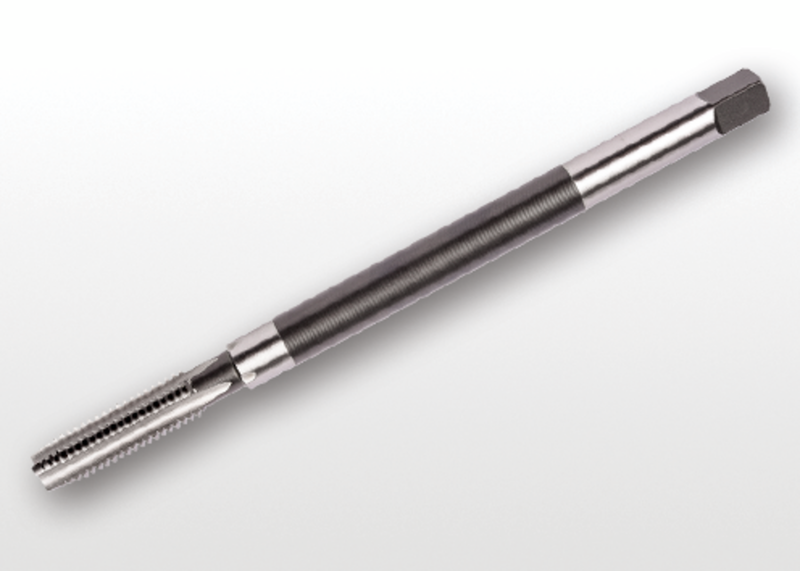

6" Longueur totale taraud à main à embout de poulie No. 5/16-18 UNC H3, finition brillante HSS selon la norme ANSI pour l'acier de moyenne résistance, l'acier au carbone moyen et l'acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0685/16X18X6NO2
Product Number8765102
Product FamilyE068NO2(UNC)
Dimensions
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Usable Length — in (LU)1.343"
Usable Length — mm (LU)34.1 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765102
EAN3603607201305
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0685/16X18X6NO2 — Line Drawing PDF Download
