E0683/8X16X10NO2
E0683/8X16X10NO2

E0683/8X16X10NO2

UGC DOR8765106
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.31 CAD - $151.31 CAD
$151.31 CAD
$151.31 CAD - $151.31 CAD
$151.31 CAD

Vendu en lots de : 1

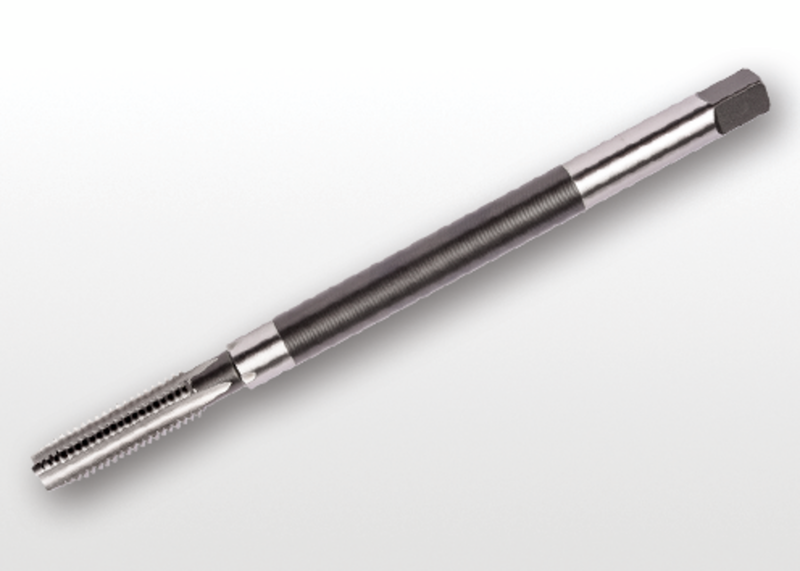

Taraud à main à embout de style poulie de 10" de longueur totale, n° 3/8-16 UNC H3, finition brillante HSS selon la norme ANSI pour les aciers à moyenne résistance, à teneur moyenne en carbone et alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0683/8X16X10NO2
Product Number8765106
Product FamilyE068NO2(UNC)
Dimensions
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Usable Length — in (LU)1.472"
Usable Length — mm (LU)37.4 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765106
EAN3603607201343
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Utilisation possible
