E0681/2X13X8NO2
E0681/2X13X8NO2

E0681/2X13X8NO2

UGC DOR8765108
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.17 CAD - $142.17 CAD
$142.17 CAD
$142.17 CAD - $142.17 CAD
$142.17 CAD

Vendu en lots de : 1

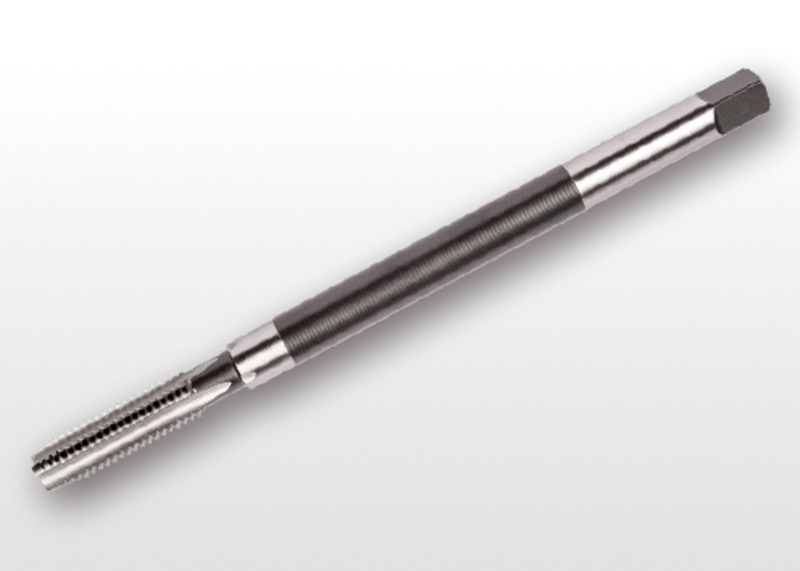

Taraud à main à poulie, longueur totale 8", n° 1/2-13 UNC H3, finition brillante HSS conforme à la norme ANSI pour acier à moyenne résistance, acier au carbone moyen et acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI)E0681/2X13X8NO2
Product Name (ISO)E0681/2X13X8NON2
Product Number8765108
Product FamilyE068NO2(UNC)
Dimensions
Overall Length — in (OAL)8.0"
Overall Length — mm (OAL)203.2 mm
Usable Length — in (LU)1.772"
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765108
EAN3603607201367
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0681/2X13X8NO2 — Line Drawing PDF Download
