E0685/8X11X6SANSNO2
E0685/8X11X6SANSNO2

E0685/8X11X6SANSNO2

UGC DOR8765110
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$148.11 CAD - $148.11 CAD
$148.11 CAD
$148.11 CAD - $148.11 CAD
$148.11 CAD

Vendu en lots de : 1

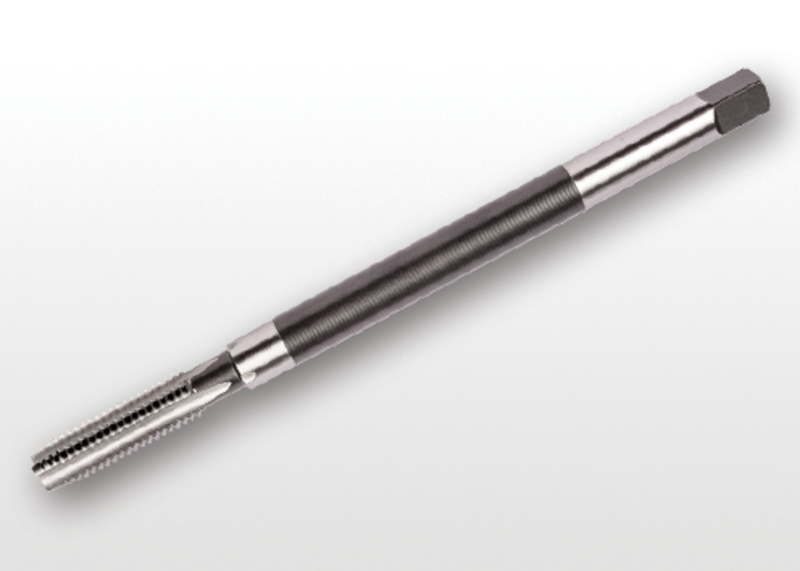

Taraud à main à col long, type poulie, longueur totale 6 pouces, référence 5/8-11 UNC H3, finition brillante HSS, conforme à la norme ANSI, pour aciers mi-durs, aciers au carbone et aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI)E0685/8X11X6NONO2
Product Name (ISO)E0685/8X11X6NO2
Product Number8765110
Product FamilyE068NO2(NC)
Dimensions
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Usable Length — in (LU)1.85"
Usable Length — mm (LU)47.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.08 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765110
EAN3603607201381
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0685/8X11X6SANSNO2 — Line Drawing PDF Download
