E0685/8X11X10NO2
E0685/8X11X10NO2

E0685/8X11X10NO2

UGC DOR8765112
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$240.91 CAD - $240.91 CAD
$240.91 CAD
$240.91 CAD - $240.91 CAD
$240.91 CAD

Vendu en lots de : 1

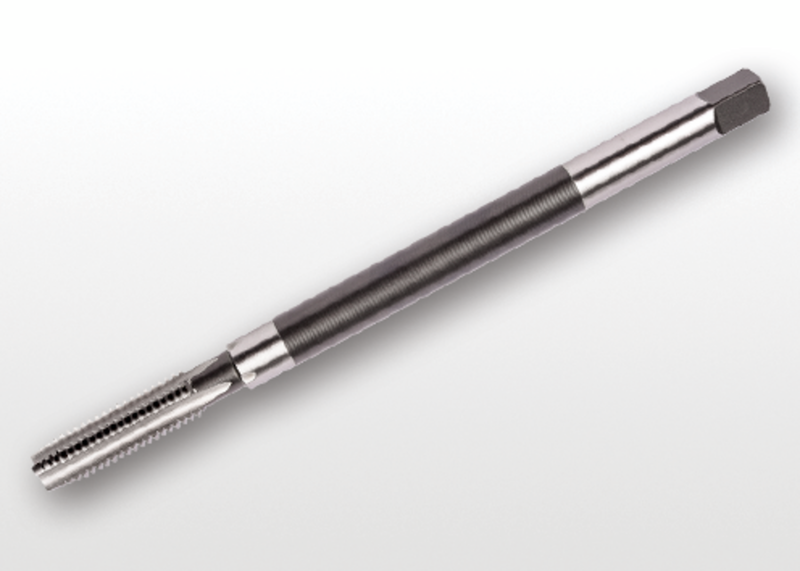

Taraud à main à poulie, longueur totale 10", No. 5/8-11 UNC H3, finition brillante HSS, conforme à la norme ANSI pour acier mi-doux, acier à teneur moyenne en carbone et acier allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0685/8X11X10NO2
Product Number8765112
Product FamilyE068NO2(UNC)
Dimensions
Overall Length — in (OAL)10.0"
Overall Length — mm (OAL)254.0 mm
Usable Length — in (LU)1.85"
Usable Length — mm (LU)47.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.08 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
StandardANSI
Reference Numbers
EDP Number8765112
EAN3603607201404
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Utilisation possible
File Type Download
E0685/8X11X10NO2 — Line Drawing PDF Download
