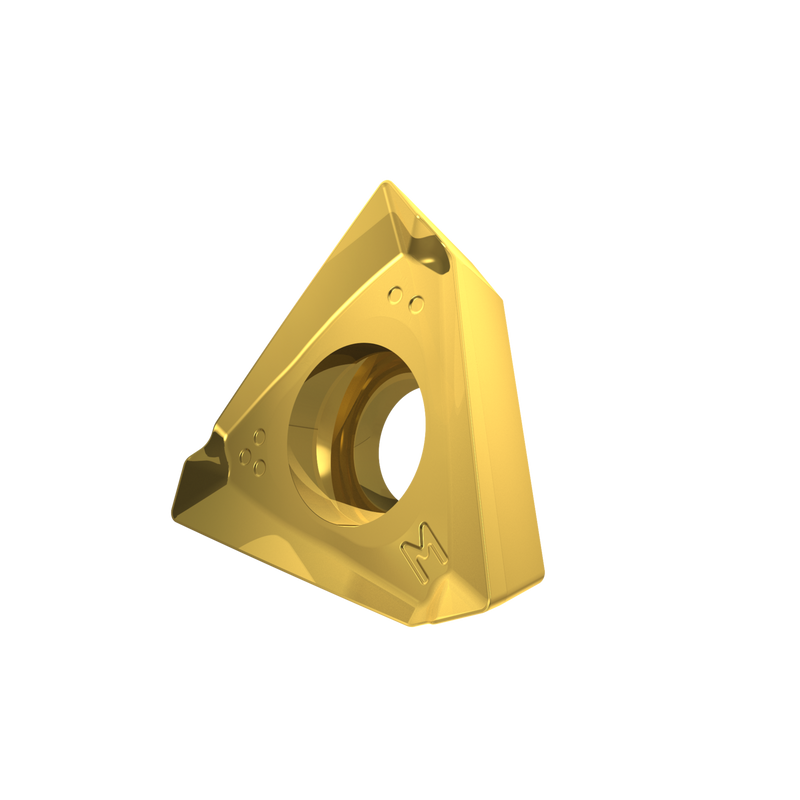

TDET 170404SR-M:M8330

TDET 170404SR-M:M8330

UGC DOR8782280
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'' (11 mm), avec un rayon de coin de 0,016'' (0,4 mm), une précision de positionnement selon la classe de tolérance ISO-E et une géométrie M avec des arêtes de coupe et un chanfrein arrondis, en carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40/M20-M35 et K20-K40 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170404SR-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number8782280
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - angulaire 60° d'angle rentrant
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782280
EAN3603604536134
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Usage possible
File Type Download
TDET 170404SR-M:M8330 — Line Drawing PDF Download
