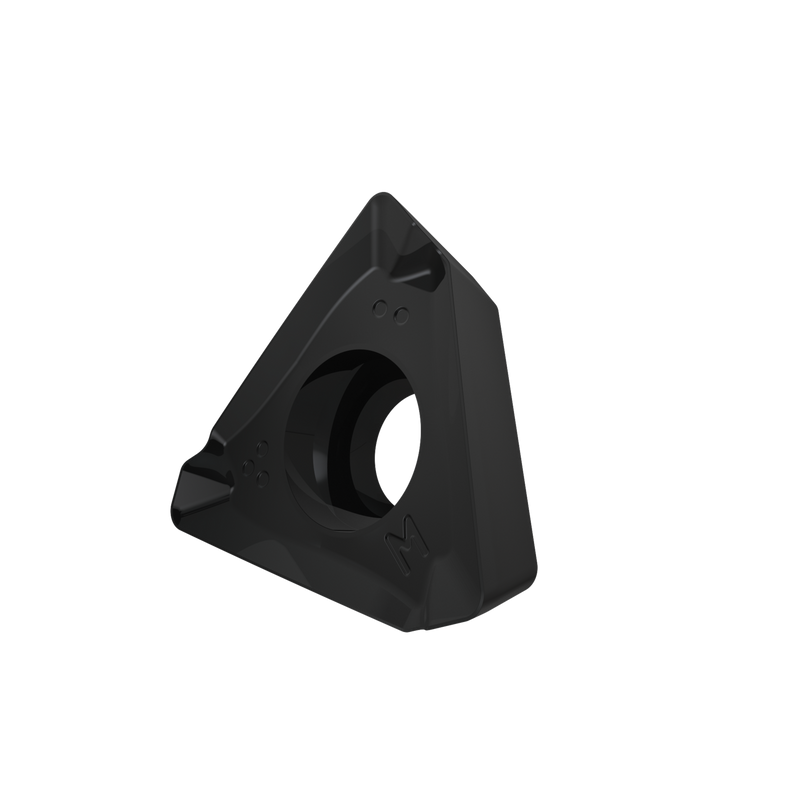

TDET 170408SR-M:M9325

TDET 170408SR-M:M9325

UGC DOR8782287
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'', avec un rayon de coin de 0,032'', une précision d'indexage selon la classe de tolérance ISO-E et une géométrie M avec arêtes de coupe et facette arrondies, carbure WC-Co revêtu M9325 MT-CVD dans les plages de nuances ISO P10-P30 et K10-K30 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408SR-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number8782287
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782287
EAN3603604536202
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
File Type Download
TDET 170408SR-M:M9325 — Line Drawing PDF Download
