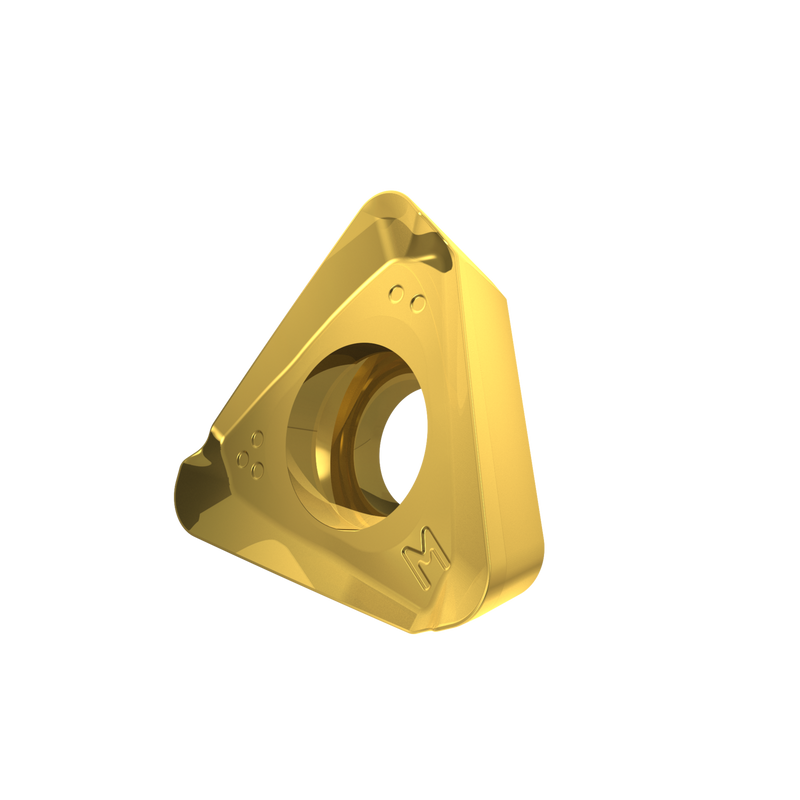

TDET 170416SR-M:M8330

TDET 170416SR-M:M8330

UGC DOR8782288
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple-face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 1,600 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co à grains fins revêtu PVD M8340 dans les plages de nuances ISO P25-P50/M20-M40 pour l'usinage de l'acier, de l'acier inoxydable avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170416SR-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number8782288
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - angulaire, angle d'ouverture de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782288
EAN3603604536219
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
TDET 170416SR-M:M8330 — Line Drawing PDF Download
