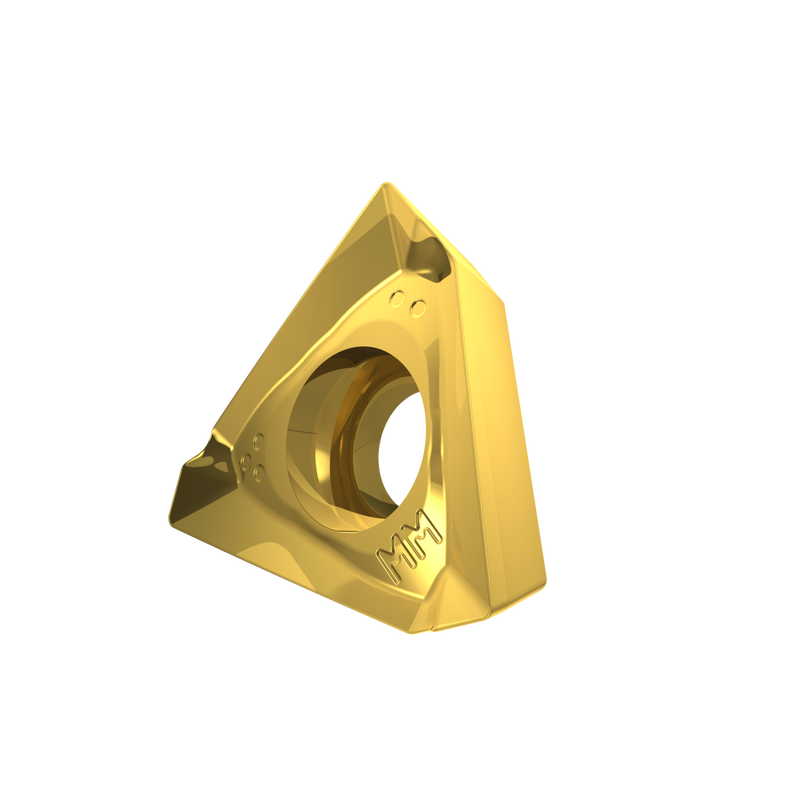

TDET 170404SR-MM:M6330

TDET 170404SR-MM:M6330

UGC DOR8782300
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.46 CAD - $16.46 CAD
$16.46 CAD
$16.46 CAD - $16.46 CAD
$16.46 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 0,406 mm, une précision d'indexage selon la classe de tolérance ISO-E et une géométrie MM avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu PVD M6330 dans les plages de nuances ISO P20-P35/M20-M35 et S20-S30 pour l'usinage de l'acier, de l'acier inoxydable et du superalliage avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170404SR-MM:M6330
GradeM6330
Chipbreaker (CBMD)MM
Product Number8782300
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782300
EAN3603604536233
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
