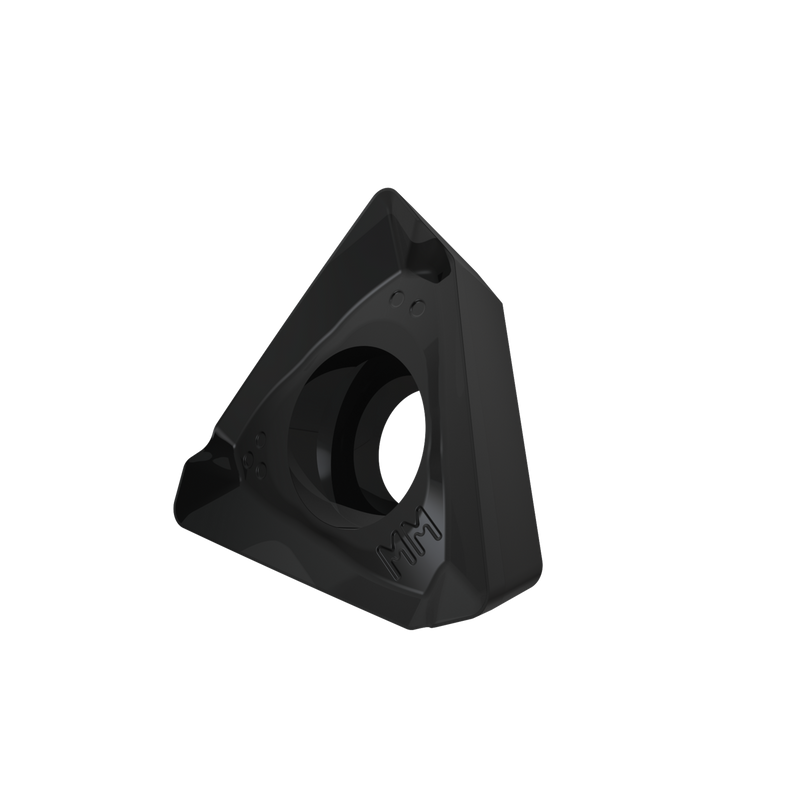

TDET 170408SR-MM:M9340

TDET 170408SR-MM:M9340

UGC DOR8782303
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.46 CAD - $16.46 CAD
$16.46 CAD
$16.46 CAD - $16.46 CAD
$16.46 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 11 mm, avec un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie MM avec arêtes de coupe et facettes arrondies, en carbure WC-Co revêtu MT-CVD M9340 dans les plages de nuances ISO P35-P50/M30-M40 et S15-S20 pour l'usinage de l'acier, de l'acier inoxydable et du superalliage avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408SR-MM:M9340
GradeM9340
Chipbreaker (CBMD)MM
Product Number8782303
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - angle d'ouverture 60° triangulaire
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782303
EAN3603604536264
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
TDET 170408SR-MM:M9340 — Line Drawing PDF Download
