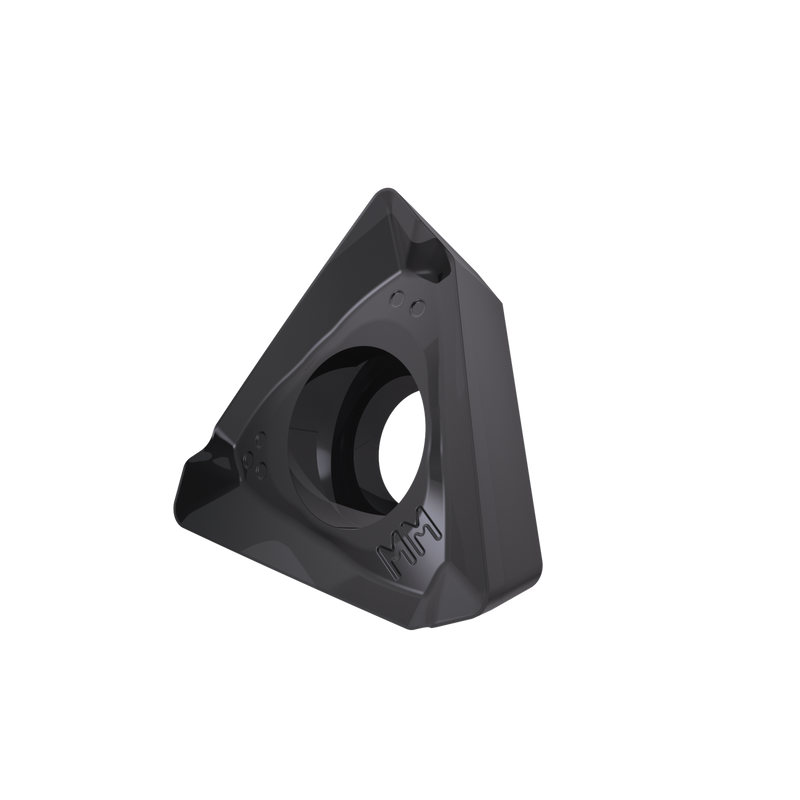

TDET 170408SR-MM:M8345

TDET 170408SR-MM:M8345

UGC DOR8782306
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.46 CAD - $16.46 CAD
$16.46 CAD
$16.46 CAD - $16.46 CAD
$16.46 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'', avec un rayon de bec de 0,032'', une précision de positionnement selon la classe de tolérance ISO E et une géométrie MM avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu PVD M8345, de nuances ISO P30-P50/M30-M40 et S20-S30, pour l'usinage de l'acier, de l'acier inoxydable et des superalliages avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408SR-MM:M8345
GradeM8345
Chipbreaker (CBMD)MM
Product Number8782306
Product FamilyTDET 17
Insert Geometry
Insert DesignDDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782306
EAN3603604536295
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
TDET 170408SR-MM:M8345 — Line Drawing PDF Download
