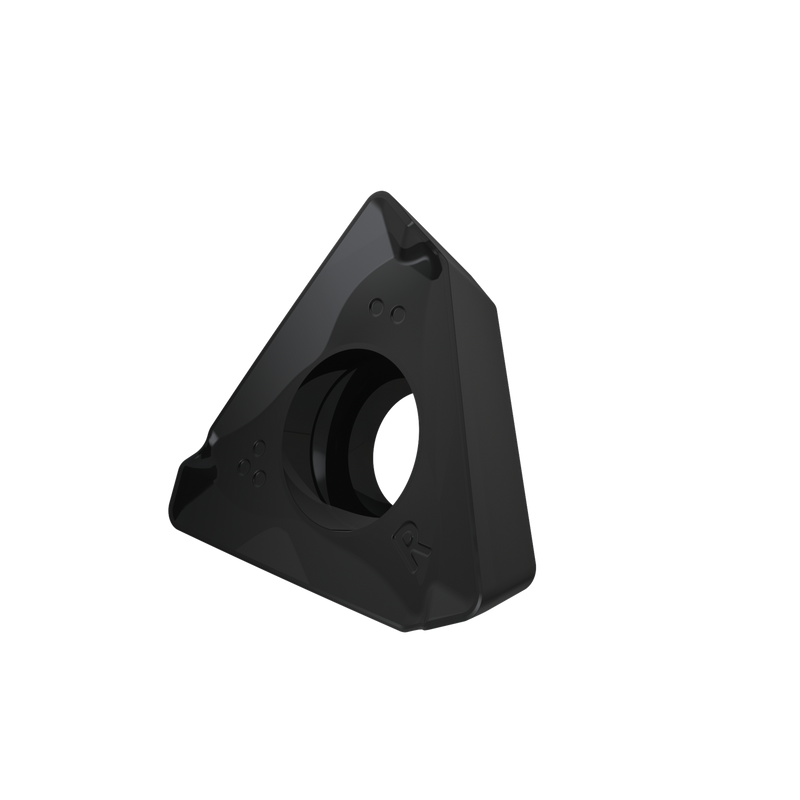

TDET 170408PR-R:M5315

TDET 170408PR-R:M5315

UGC DOR8782309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 0,813 mm, une précision d'indexage selon la classe de tolérance ISO-E et une géométrie R avec des arêtes de coupe arrondies et double facette, carbure WC-Co revêtu MT-CVD M5315 dans la plage de nuances ISO K05-K25 pour l'usinage de la fonte avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408PR-R:M5315
GradeM5315
Chipbreaker (CBMD)R
Product Number8782309
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782309
EAN3603604536325
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
TDET 170408PR-R:M5315 — Line Drawing PDF Download
