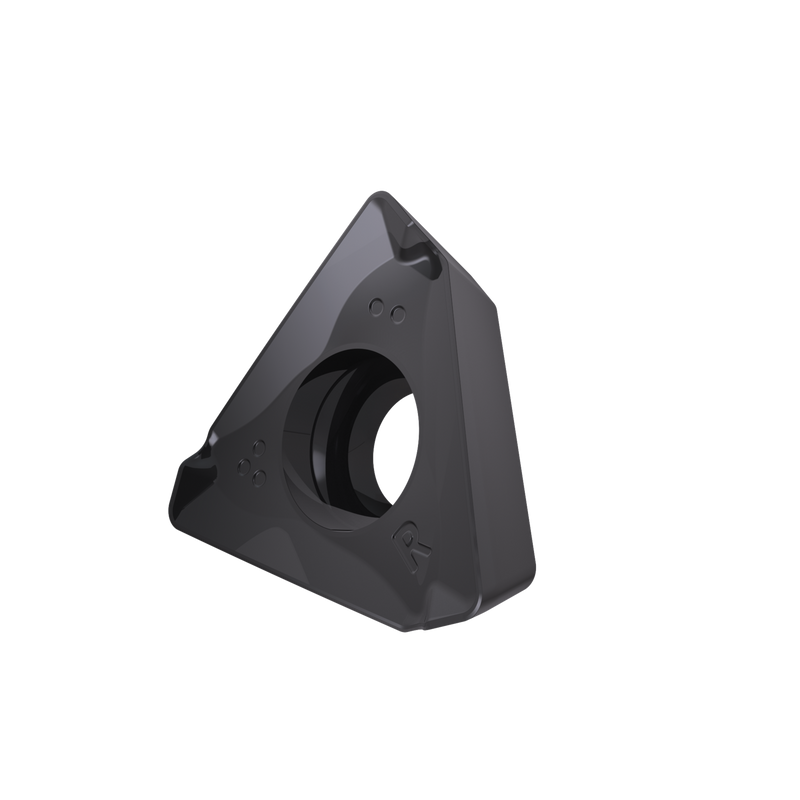

TDET 170408PR-R:8215

TDET 170408PR-R:8215

UGC DOR8782380
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.11 CAD - $16.11 CAD
$16.11 CAD
$16.11 CAD - $16.11 CAD
$16.11 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'', avec un rayon de coin de 0,032'', une précision d'indexage selon la classe de tolérance ISO-E et une géométrie R avec des arêtes de coupe arrondies et double facette, en carbure WC-Co à grains fins revêtu PVD 8215, dans les plages de nuances ISO P10-P20 et K10-K25 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408PR-R:8215
Grade8215
Chipbreaker (CBMD)R
Product Number8782380
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782380
EAN3603604536332
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
TDET 170408PR-R:8215 — Line Drawing PDF Download
