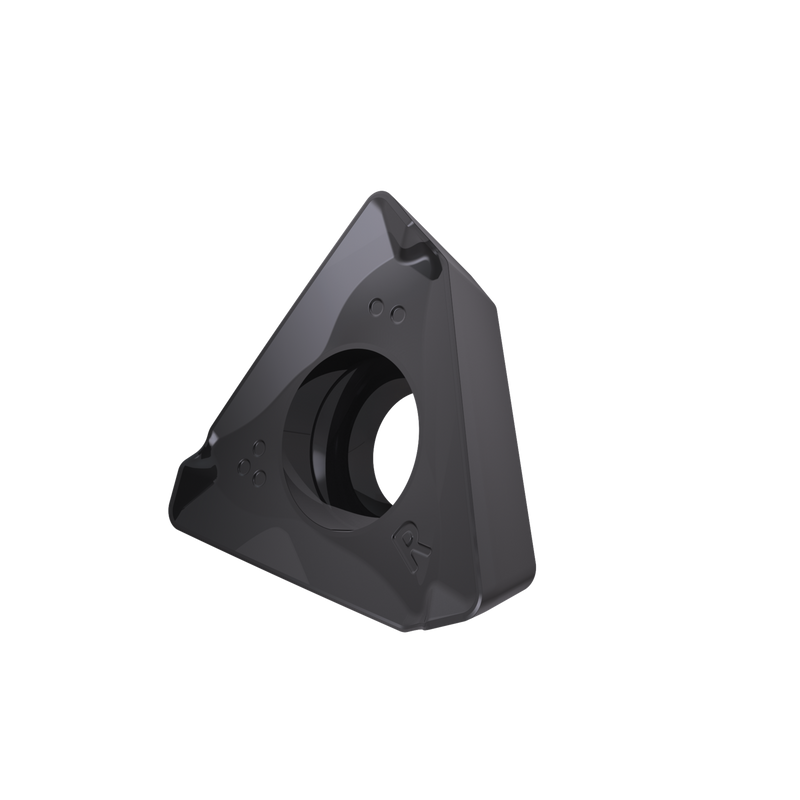

TDET 170408PR-R:M8310

TDET 170408PR-R:M8310

UGC DOR8782381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 0,813 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie R avec des arêtes de coupe arrondies et un double chanfrein, carbure WC-Co à grains fins revêtu PVD M8310 dans les plages de nuances ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408PR-R:M8310
GradeM8310
Chipbreaker (CBMD)R
Product Number8782381
Product FamilyTDET 17
Insert Geometry
Insert DesignATDD
Insert Shape Code (SC)T - angle de 60° inclus triangulaire
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782381
EAN3603604536349
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
TDET 170408PR-R:M8310 — Line Drawing PDF Download
