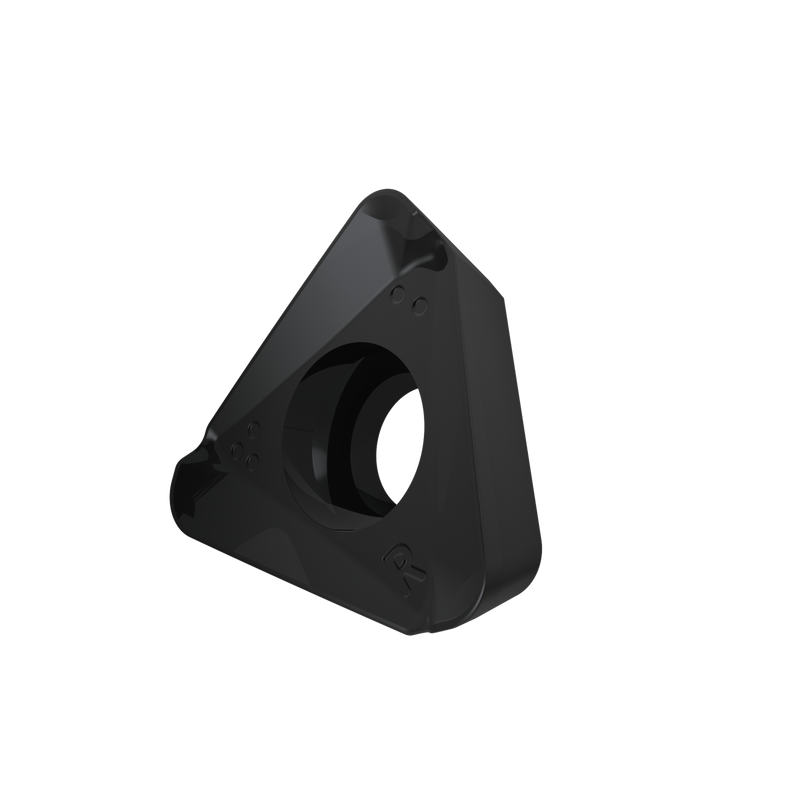

TDET 170416PR-R:M5315

TDET 170416PR-R:M5315

UGC DOR8782384
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 0,433'', avec un rayon de coin de 0,063'', une précision d'indexage selon la classe de tolérance ISO-E et une géométrie R avec des arêtes de coupe arrondies et une double facette, carbure WC-Co revêtu MT-CVD M5315 dans la gamme de grades ISO K05-K25 pour l'usinage de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170416PR-R:M5315
GradeM5315
Chipbreaker (CBMD)R
Product Number8782384
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782384
EAN3603604536370
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
TDET 170416PR-R:M5315 — Line Drawing PDF Download
