TDET 170416PR-R:M8330

TDET 170416PR-R:M8330

UGC DOR8782385
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.50 CAD - $16.50 CAD
$16.50 CAD
$16.50 CAD - $16.50 CAD
$16.50 CAD

Vendu en lots de : 10

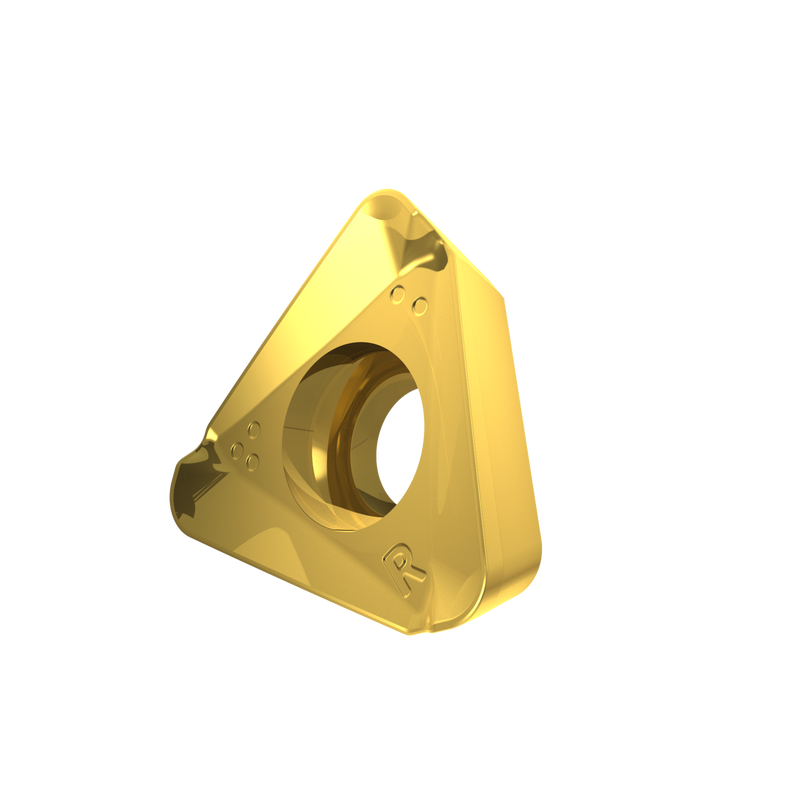

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de coin de 1,600 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie R avec des arêtes de coupe arrondies et double facette, en carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de grades ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170416PR-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number8782385
Product FamilyTDET 17
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782385
EAN3603604536387
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
TDET 170416PR-R:M8330 — Line Drawing PDF Download
