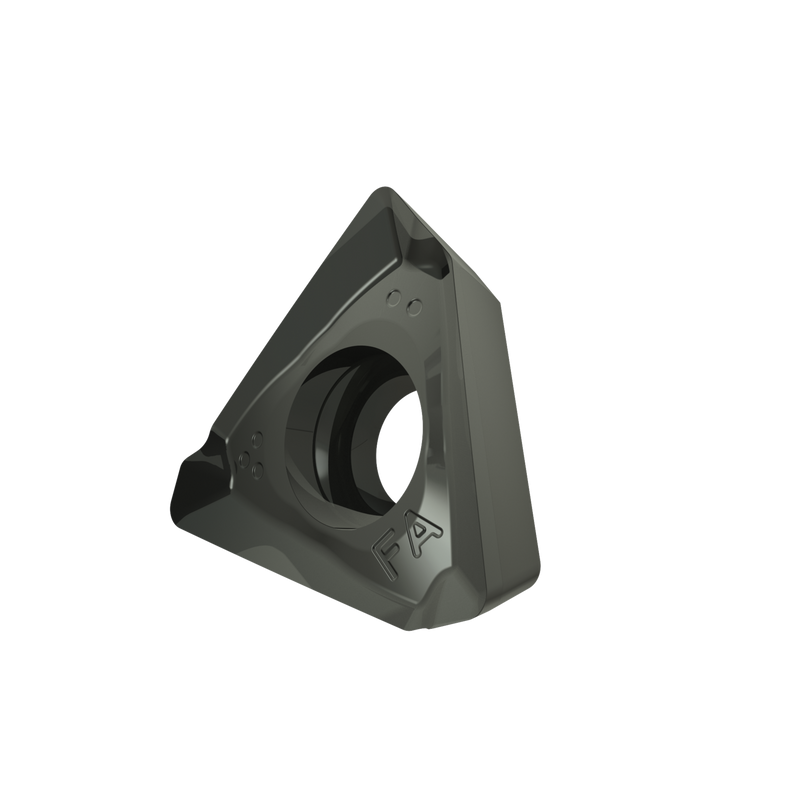

TDET 170408FR-FA:M0315

TDET 170408FR-FA:M0315

UGC DOR8782387
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.46 CAD - $16.46 CAD
$16.46 CAD
$16.46 CAD - $16.46 CAD
$16.46 CAD

Vendu en lots de : 10

Plaquette de fraisage triangulaire simple face TDET 1704, pour une profondeur de coupe maximale de 10,998 mm, avec un rayon de bec de 0,813 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie FA avec des arêtes de coupe et un listel arrondis, en carbure WC-Co à grains fins revêtu PVD M0315 dans les plages de nuances ISO N05 - N25 pour l'usinage des métaux non ferreux avec les fraises à épaulement STD17/ISTD17

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TDET 170408FR-FA:M0315
GradeM0315
Chipbreaker (CBMD)FA
Product Number8782387
Product FamilyTDET 17-FA
Insert Geometry
Insert DesignTDET
Insert Shape Code (SC)T - angulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.406"
Inscribed Circle Dia. — mm (IC)10.3 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Dimensions
Connection Dia. — in (DCON)0.492"
Tool Information
Tool DesignMST17
Reference Numbers
EDP Number8782387
EAN3603604536400
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
TDET 170408FR-FA:M0315 — Line Drawing PDF Download
