35A3R034A32-STD17D-C
35A3R034A32-STD17D-C

35A3R034A32-STD17D-C

UGC DOR8782471
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$388.00 CAD - $388.00 CAD
$388.00 CAD
$388.00 CAD - $388.00 CAD
$388.00 CAD

Vendu en lots de : 1

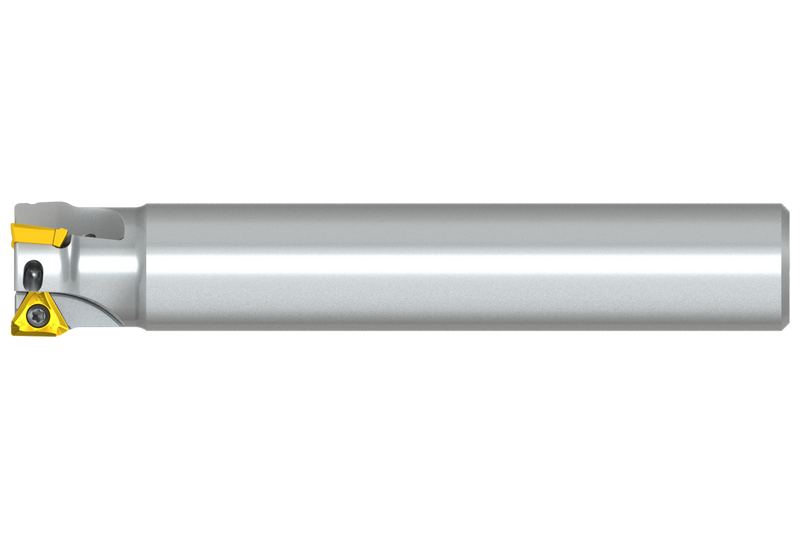

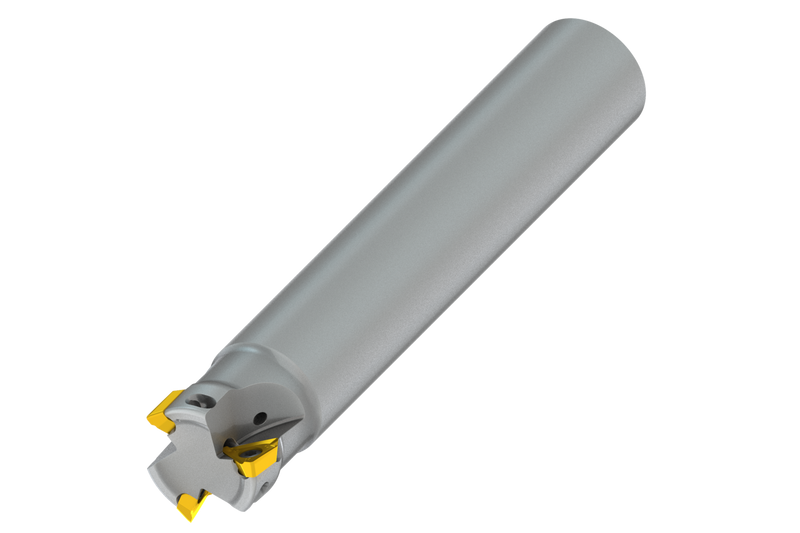

Fraise à épaule à géométrie positive/négative qui utilise 3 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 35 mm avec angle d'attaque de 90° et queue cylindrique de 32 mm selon DIN 1835A, longueur fonctionnelle de 34 mm et longueur totale de 195 mm, arrosage central pour le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 11,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)35A3R034A32-STD17D-C
Product Number8782471
Product FamilyMST17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)195.0 mm
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignMST17
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number8782471
EAN3603604536448
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
35A3R034A32-STD17D-C — 3D Model STP Download
35A3R034A32-STD17D-C — 2D Model DXF Download
