32A2R042B32-STD17D-C
32A2R042B32-STD17D-C

32A2R042B32-STD17D-C

UGC DOR8782474
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.00 CAD - $365.00 CAD
$365.00 CAD
$365.00 CAD - $365.00 CAD
$365.00 CAD

Vendu en lots de : 1

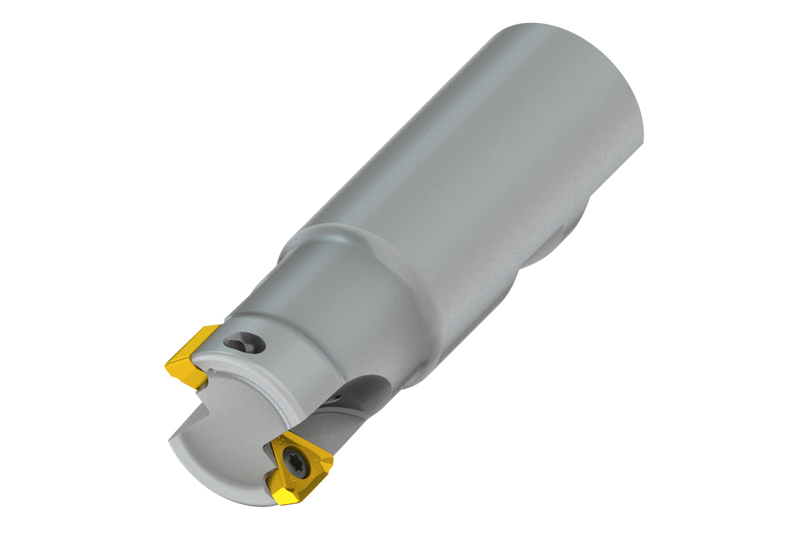

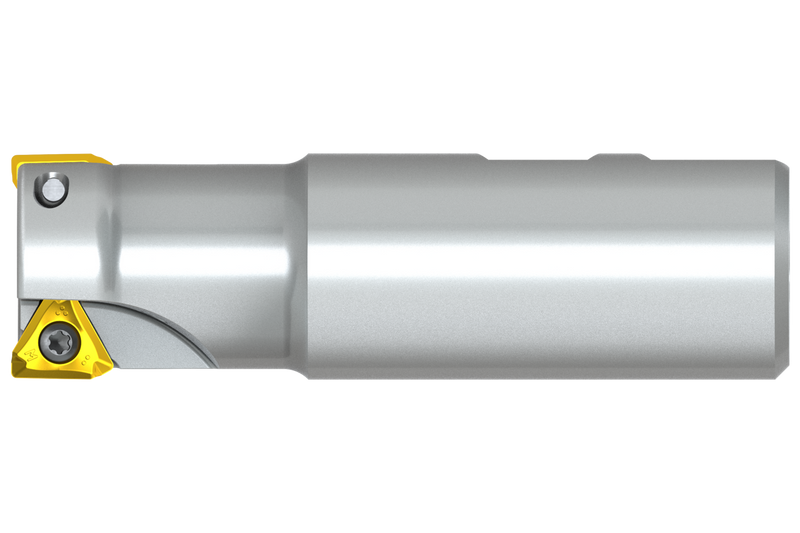

Fraise à épaule avec géométrie positive/négative utilisant 2 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 32mm avec angle d'attaque 90° et queue Weldon 32mm selon DIN 1835B, longueur utile 42mm et longueur totale 110mm, arrosage central pour fraisage d'épaulement peu profond, fraisage de rainure peu profonde, rampage, fraisage hélicoïdal, fraisage en plongée et fraisage en plongée progressive avec une profondeur de coupe maximale de 11.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A2R042B32-STD17D-C
Product Number8782474
Product FamilyMST17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Usable Length — in (LU)1.654"
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignMST17
ShankQueue Weldon DIN 1835B
Reference Numbers
EDP Number8782474
EAN3603604536462
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
32A2R042B32-STD17D-C — 3D Model STP Download
32A2R042B32-STD17D-C — 2D Model DXF Download
