32A3R043M16-STD17D-C
32A3R043M16-STD17D-C

32A3R043M16-STD17D-C

UGC DOR8782479
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$359.00 CAD - $359.00 CAD
$359.00 CAD
$359.00 CAD - $359.00 CAD
$359.00 CAD

Vendu en lots de : 1

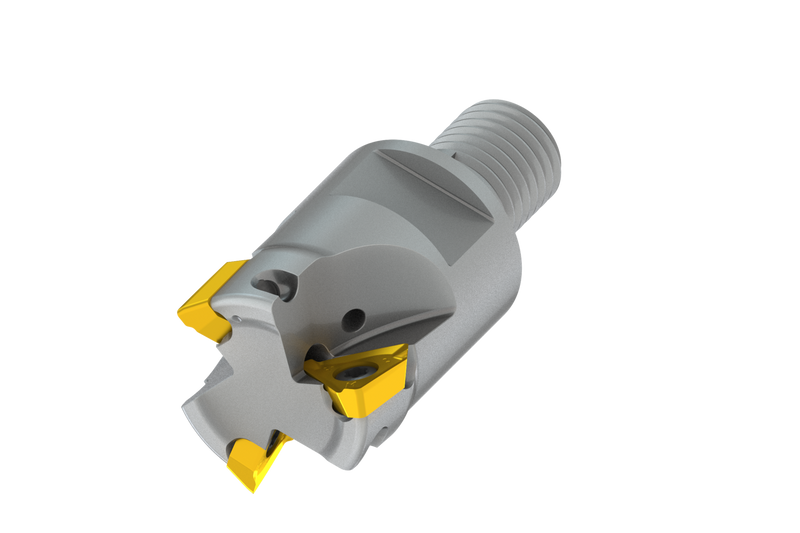

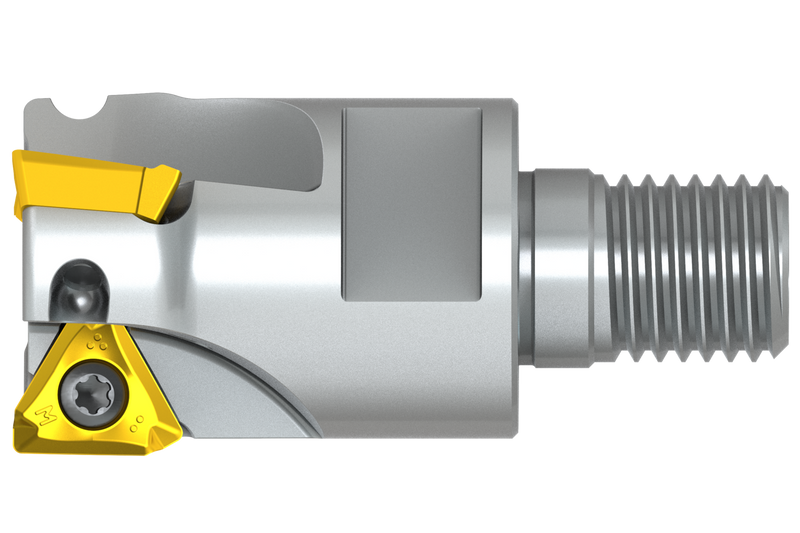

Fraise à épaule à géométrie positive/négative qui utilise 3 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 32mm avec un angle d'attaque de 90° et une queue filetée M16mm pour porte-outils modulaires standards, longueur en porte-à-faux de 43mm, arrosage interne pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 11,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R043M16-STD17D-C
Product Number8782479
Product FamilyMST17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignMST17
ShankRaccord fileté
Reference Numbers
EDP Number8782479
EAN3603604536516
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
32A3R043M16-STD17D-C — 3D Model STP Download
32A3R043M16-STD17D-C — 2D Model DXF Download
