115A10R-S90TD17D-C
115A10R-S90TD17D-C

115A10R-S90TD17D-C

UGC DOR8782513
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$937.00 CAD - $937.00 CAD
$937.00 CAD
$937.00 CAD - $937.00 CAD
$937.00 CAD

Vendu en lots de : 1

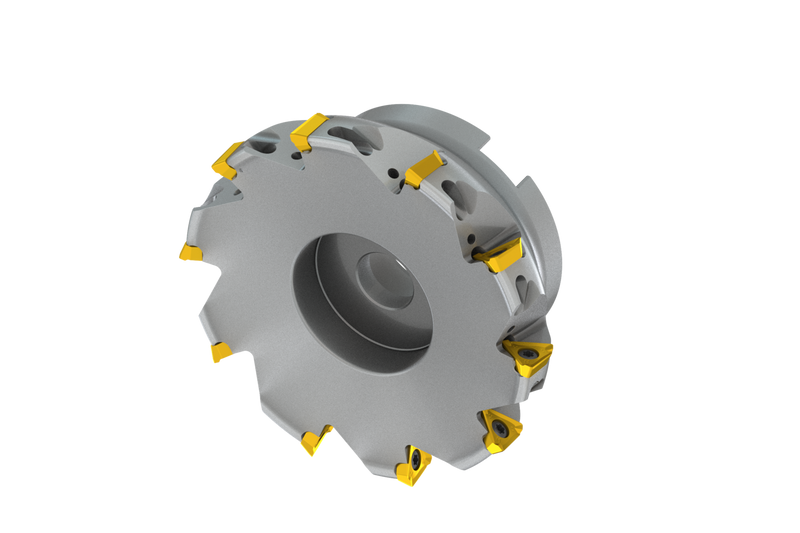

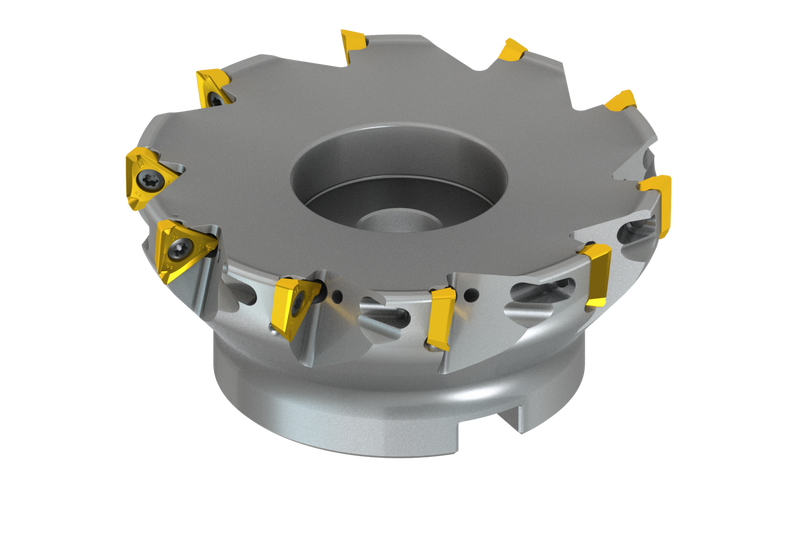

Fraise à épaulement à géométrie positive/négative qui utilise 10 plaquettes simple-face TDMT 1704... ou TDET 1704..., diamètre de coupe 115 mm avec un angle d'attaque de 90° et un alésage de raccordement de 32 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le surfaçage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 11,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)115A10R-S90TD17D-C
Product Number8782513
Product FamilyMST17
Insert Geometry
Insert DesignTDET17
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)4.528"
Cutting Diameter — mm (DC)115.0 mm
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignMST17
ShankFraise à surfacer-planer DIN 8030 A
Reference Numbers
EDP Number8782513
EAN3603604536653
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
115A10R-S90TD17D-C — 3D Model STP Download
115A10R-S90TD17D-C — 2D Model DXF Download
