140A12R-S90TD17D-C
140A12R-S90TD17D-C

140A12R-S90TD17D-C

UGC DOR8782516
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,161.00 CAD - $1,161.00 CAD
$1,161.00 CAD
$1,161.00 CAD - $1,161.00 CAD
$1,161.00 CAD

Vendu en lots de : 1

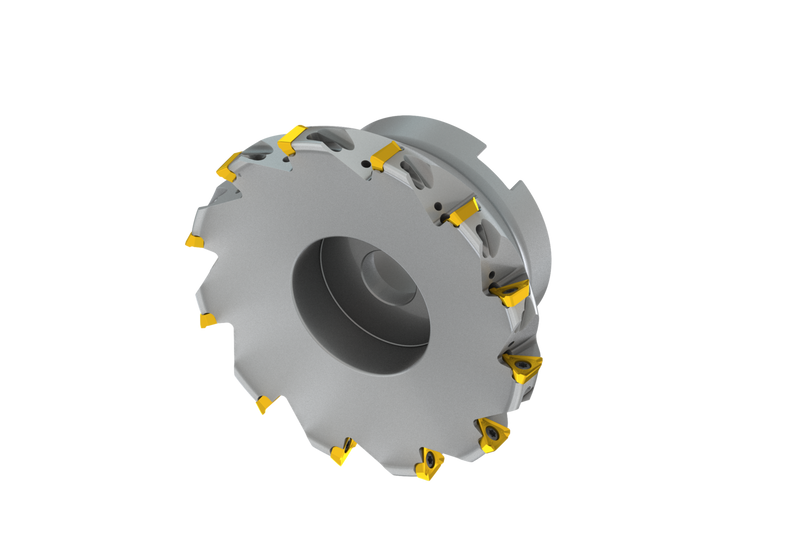

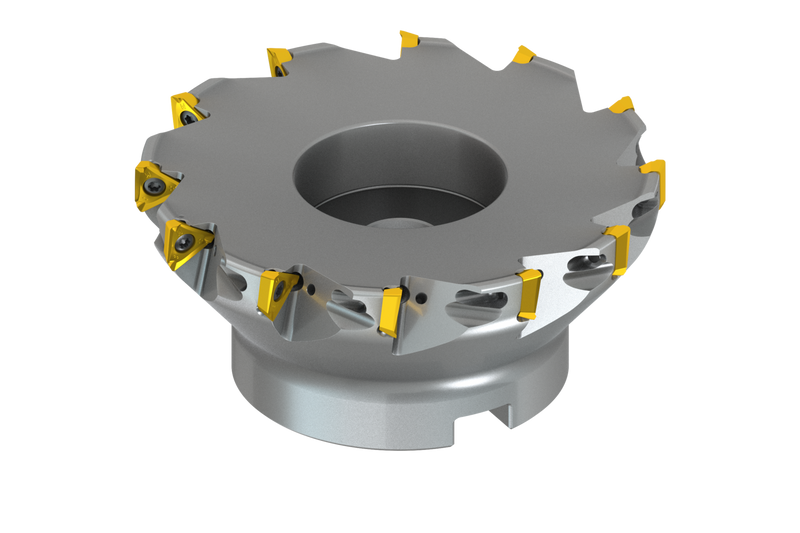

Fraise à épaule avec géométrie positive/négative qui utilise 12 plaquettes unilatérales TDMT 1704... ou TDET 1704..., diamètre de coupe 140 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-A, longueur de dépassement de 63 mm, arrosage interne et pas différentiel pour le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 11,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)140A12R-S90TD17D-C
Product Number8782516
Product FamilyMST17
Insert Geometry
Insert DesignTDET17
Depth of Cut Max — in (APMX)0.433"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)5.512"
Cutting Diameter — mm (DC)140.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignMST17
ShankFraise à surfacer-planer DIN 8030 A
Reference Numbers
EDP Number8782516
EAN3603604536684
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
140A12R-S90TD17D-C — 3D Model STP Download
140A12R-S90TD17D-C — 2D Model DXF Download
