125A2R165W125-ISTD17D-C
125A2R165W125-ISTD17D-C

125A2R165W125-ISTD17D-C

UGC DOR8782553
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$365.00 CAD - $365.00 CAD
$365.00 CAD
$365.00 CAD - $365.00 CAD
$365.00 CAD

Vendu en lots de : 1

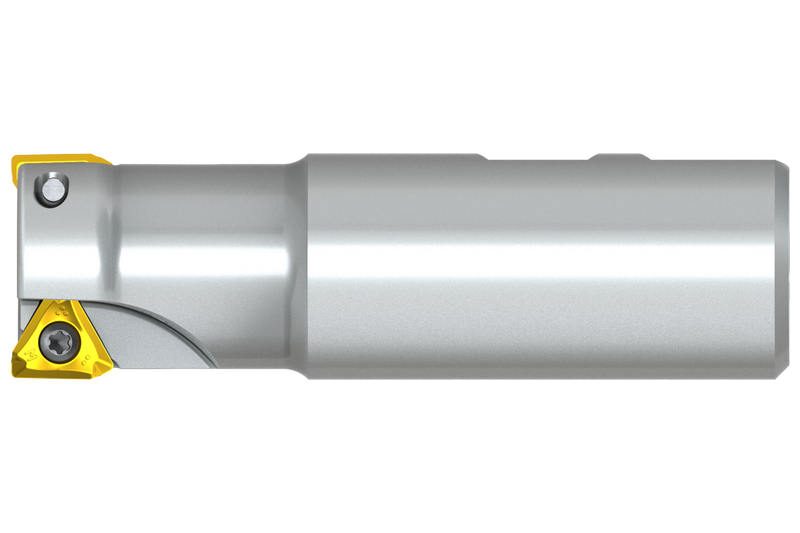

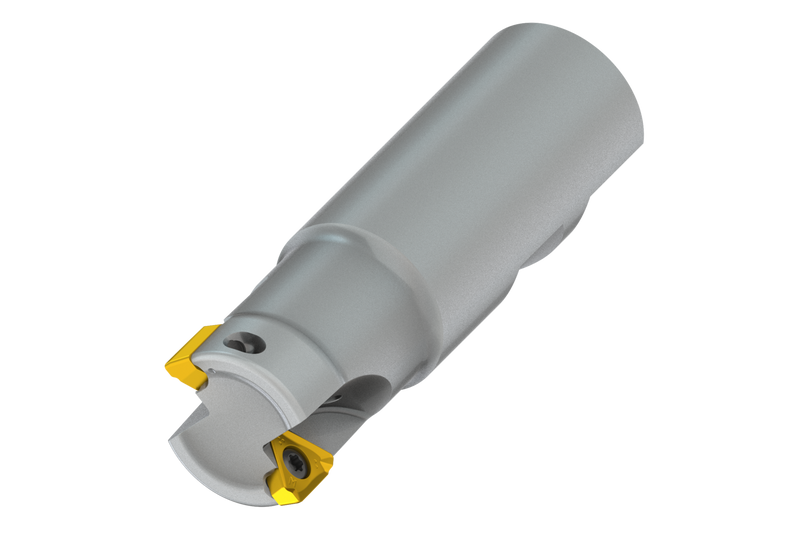

Fraise à épaule avec géométrie positive/négative qui utilise 2 plaquettes simple face TDMT 1704.. ou TDET 1704.., diamètre de coupe 1,250'' avec angle d'attaque de 90° et queue Weldon de 1,250'' selon DIN 1835B, longueur fonctionnelle de 1,654'' et longueur totale de 4,331'', arrosage interne pour le fraisage d'épaulement peu profond, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 0,433''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A2R165W125-ISTD17D-C
Product Number8782553
Product FamilyISTD17
Insert Geometry
Depth of Cut Max — in (APMX)0.433"
Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Usable Length — in (LU)1.654"
Usable Length — mm (LU)42.01 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignMST17
ShankQueue Weldon DIN 1835B
Reference Numbers
EDP Number8782553
EAN3603604536752
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
125A2R165W125-ISTD17D-C — 3D Model STP Download
125A2R165W125-ISTD17D-C — 2D Model DXF Download
