RC4033/4
RC4033/4
RC4033/4
RC4033/4

RC4033/4

UGC DOR8881878
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$736.21 CAD - $736.21 CAD
$736.21 CAD
$736.21 CAD - $736.21 CAD
$736.21 CAD

Vendu en lots de : 1

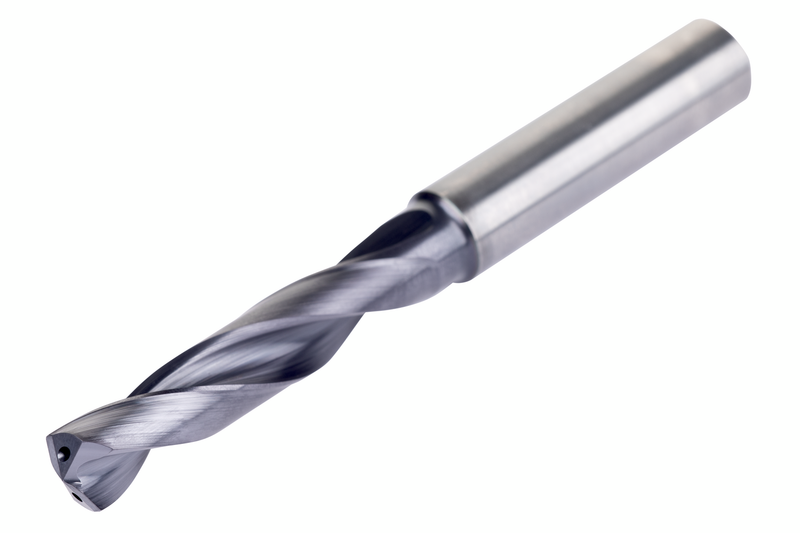

Ce foret haute performance de 19,05 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140°, 4 facettes et une construction de goujure CTW. DCON MS 20 mm, LCF 79 mm et OAL 131 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil. Le refroidissement interne améliore l'évacuation des copeaux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4033/4
GradeTiAlN/Sommet
Product Number8881878
Product FamilyRC403
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant Yes
StandardDIN 6537
Reference Numbers
EDP Number8881878
EAN3603607339725
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage principal
File Type Download
RC4033/4 — 3D Model STP Download
RC4033/4 — 2D Model DXF Download
RC4033/4 — Line Drawing PDF Download
