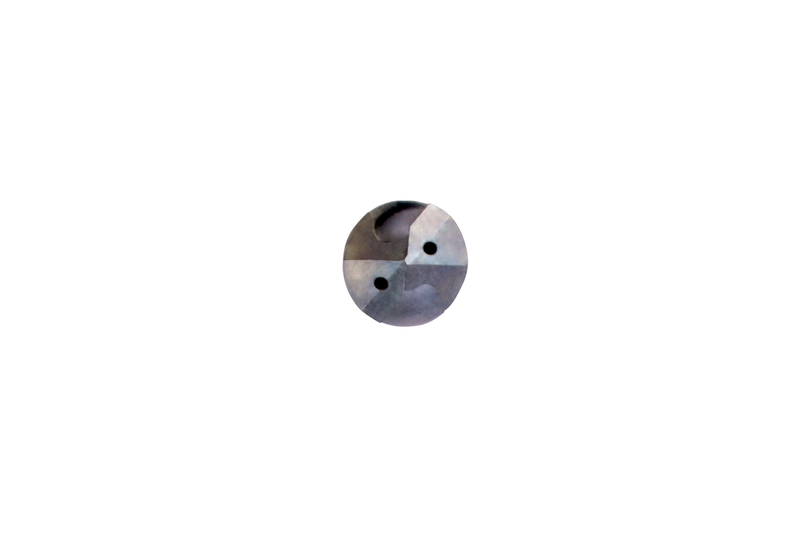

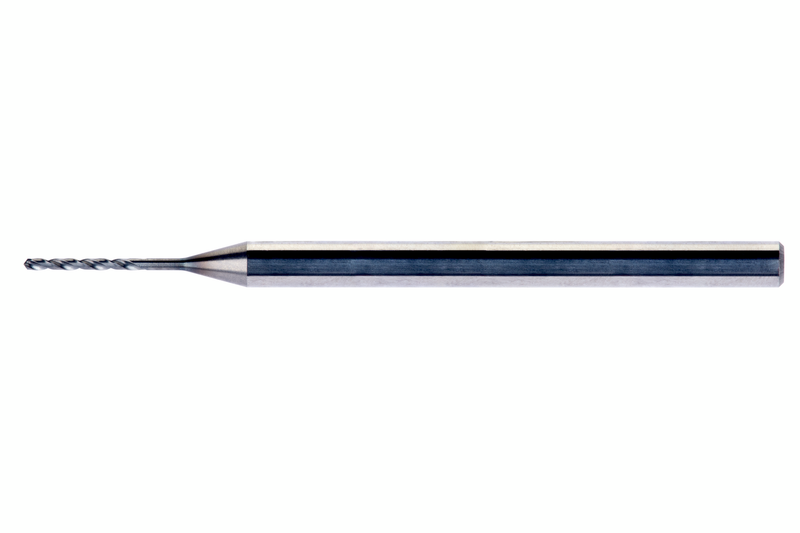

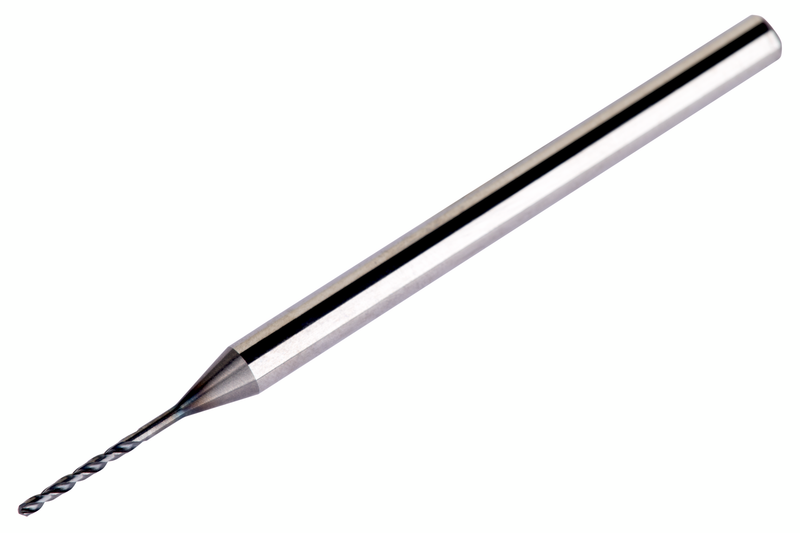

Micro-foret haute performance de diamètre de coupe 0,9 mm, conçu pour des applications de précision, doté d'un angle de pointe de 140° et capable de percer jusqu'à 5xD avec une excellente qualité de surface. DCON MS 3 mm, LCF 8 mm et OAL 50 mm. L'arrosage interne améliore l'évacuation des copeaux, tandis que le revêtement AlCrN avancé offre une résistance exceptionnelle à l'usure, une stabilité thermique et une fiabilité de processus.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC3050.9
Product Number8903885
Product FamilyRC305
Dimensions
Cutting Diameter — in (DC)0.035"
Cutting Diameter — mm (DC)0.9 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Flute Length — in (LCF)0.315"
Flute Length — mm (LCF)8.0 mm
Functional Length — in (LF)0.26"
Functional Length — mm (LF)6.6 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8903885
EAN3603607350355
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
RC3050.9 — 3D Model STP Download
RC3050.9 — 2D Model DXF Download
RC3050.9 — Line Drawing PDF Download
