UGC DOR8903892
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$166.57 CAD - $166.57 CAD
$166.57 CAD
$166.57 CAD - $166.57 CAD
$166.57 CAD

Vendu en lots de : 1

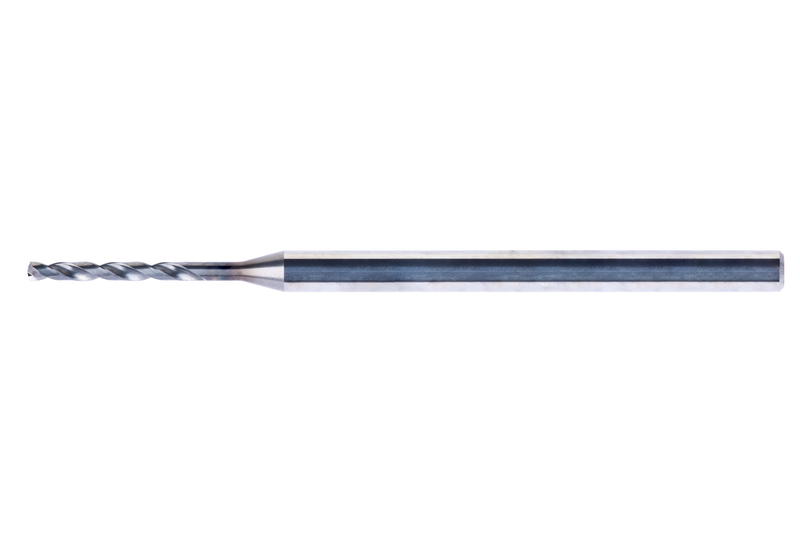

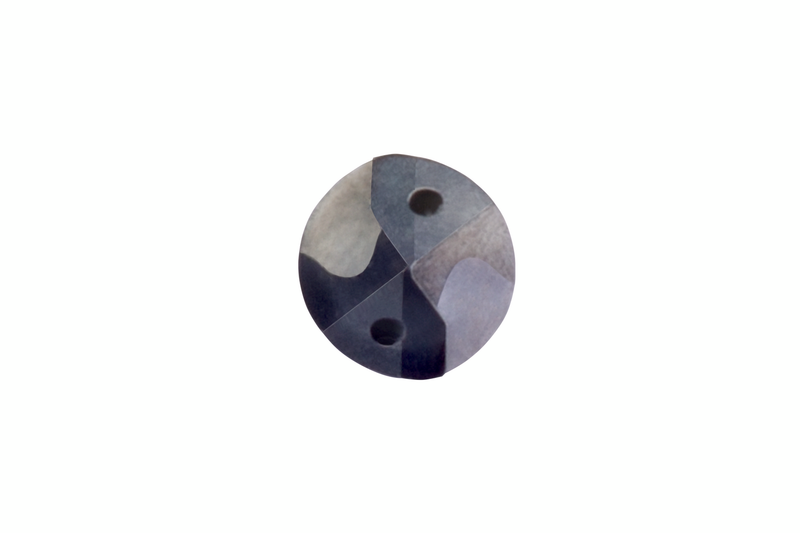

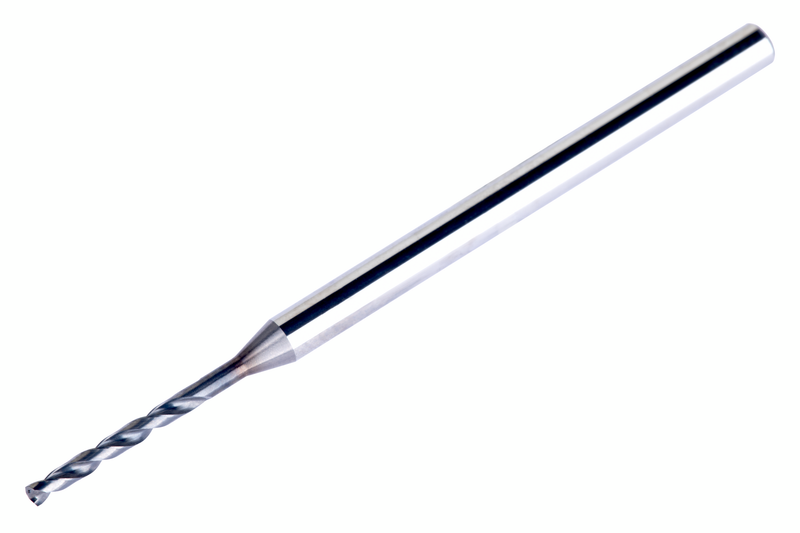

Micro-foret haute performance de 1,2 mm de diamètre de coupe, conçu pour les applications de précision, avec un angle de pointe de 140° et capable de percer jusqu'à 5xD avec une excellente qualité de surface. DCON MS 3 mm, LCF 10 mm et OAL 51 mm. Le refroidissement interne améliore l'évacuation des copeaux, tandis que le revêtement AlCrN avancé offre une résistance à l'usure, une stabilité thermique et une fiabilité de processus exceptionnelles.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC3051.2
Product Number8903892
Product FamilyRC305
Dimensions
Cutting Diameter — in (DC)0.047"
Cutting Diameter — mm (DC)1.2 mm
Overall Length — in (OAL)2.008"
Overall Length — mm (OAL)51.0 mm
Flute Length — in (LCF)0.394"
Flute Length — mm (LCF)10.0 mm
Functional Length — in (LF)0.315"
Functional Length — mm (LF)8.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8903892
EAN3603607350423
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
