RC4127.4
RC4127.4
RC4127.4

RC4127.4

UGC DOR8904028
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$410.93 CAD - $410.93 CAD
$410.93 CAD
$410.93 CAD - $410.93 CAD
$410.93 CAD

Vendu en lots de : 1

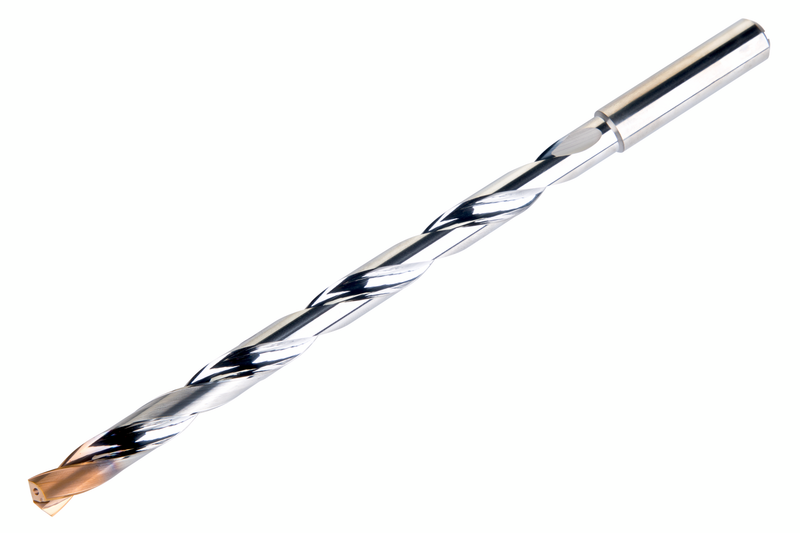

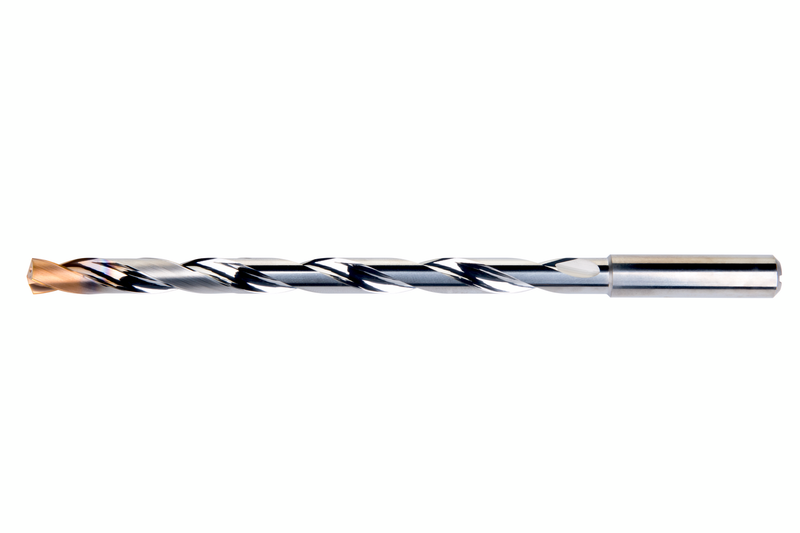

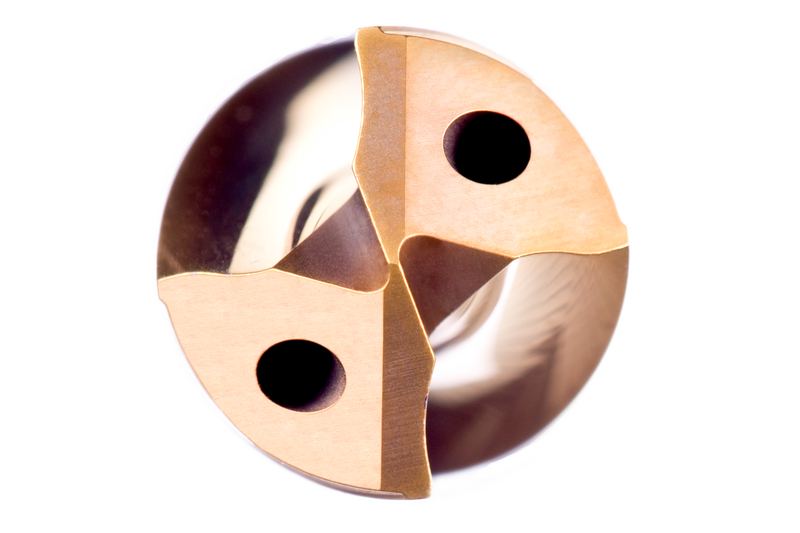

Foret à haut rendement pour trous profonds de 7,4 mm de diamètre de coupe, avec un angle de pointe de 140° et une âme amincie optimisée, permettant un perçage jusqu'à 12xD sans débourrage. DCON MS 8 mm, LCF 110 mm et LHT 148 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes améliorent l'efficacité du refroidissement.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4127.4
Product Number8904028
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.291"
Cutting Diameter — mm (DC)7.4 mm
Overall Length — in (OAL)5.827"
Overall Length — mm (OAL)148.0 mm
Flute Length — in (LCF)4.331"
Flute Length — mm (LCF)110.0 mm
Functional Length — in (LF)3.858"
Functional Length — mm (LF)98.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904028
EAN3603607351376
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4127.4 — 3D Model STP Download
RC4127.4 — 2D Model DXF Download
RC4127.4 — Line Drawing PDF Download
