RC4129.2
RC4129.2
RC4129.2

RC4129.2

UGC DOR8904046
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$480.86 CAD - $480.86 CAD
$480.86 CAD
$480.86 CAD - $480.86 CAD
$480.86 CAD

Vendu en lots de : 1

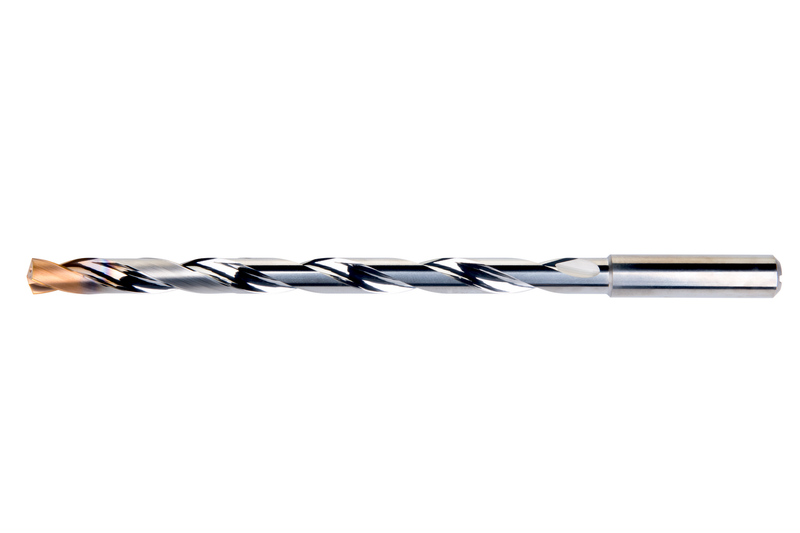

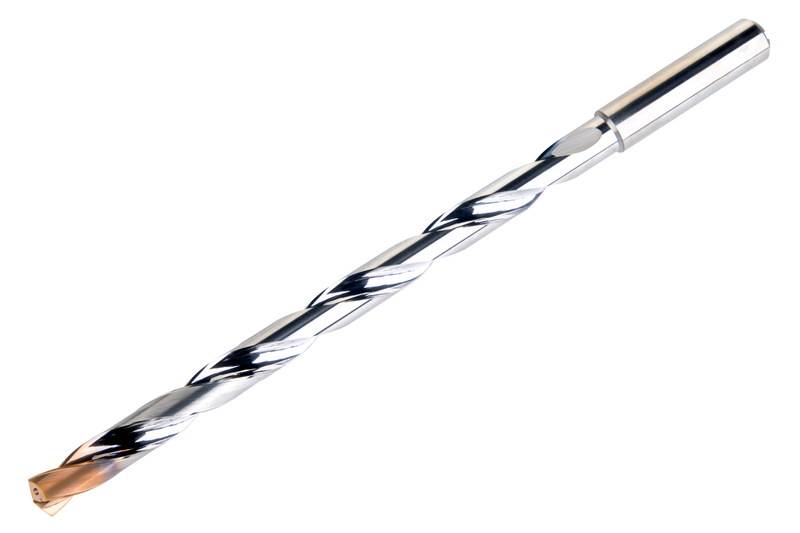

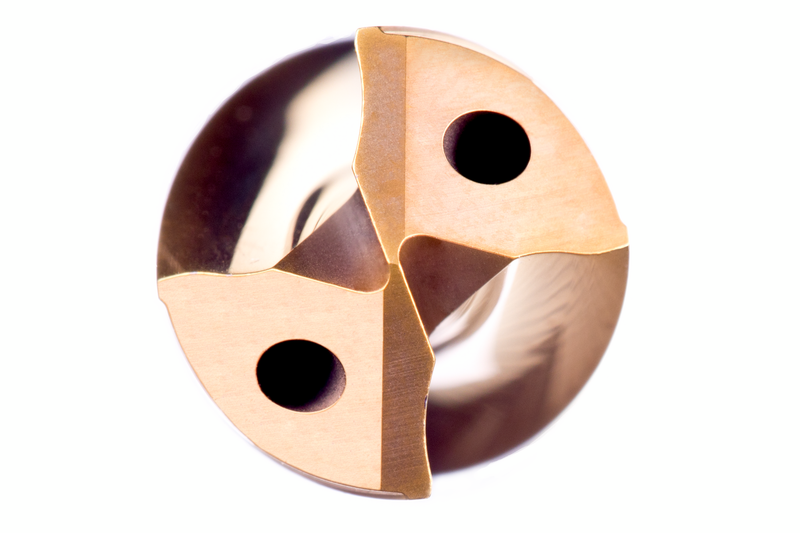

Forets hélicoïdaux à grande vitesse de 9,2 mm de diamètre de coupe pour perçage de trous profonds, avec un angle de pointe de 140° et une âme plus fine optimisée, permettant un perçage jusqu'à 12xD sans débourrage. DCON MS 10 mm, LCF 138 mm et OAL 180 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux de refroidissement internes assurent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4129.2
Product Number8904046
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.362"
Cutting Diameter — mm (DC)9.2 mm
Overall Length — in (OAL)7.087"
Overall Length — mm (OAL)180.0 mm
Flute Length — in (LCF)5.433"
Flute Length — mm (LCF)138.0 mm
Functional Length — in (LF)4.843"
Functional Length — mm (LF)123.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904046
EAN3603607351550
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4129.2 — 3D Model STP Download
RC4129.2 — 2D Model DXF Download
RC4129.2 — Line Drawing PDF Download
