RC41213/32
RC41213/32
RC41213/32

RC41213/32

UGC DOR8904058
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$652.14 CAD - $652.14 CAD
$652.14 CAD
$652.14 CAD - $652.14 CAD
$652.14 CAD

Vendu en lots de : 1

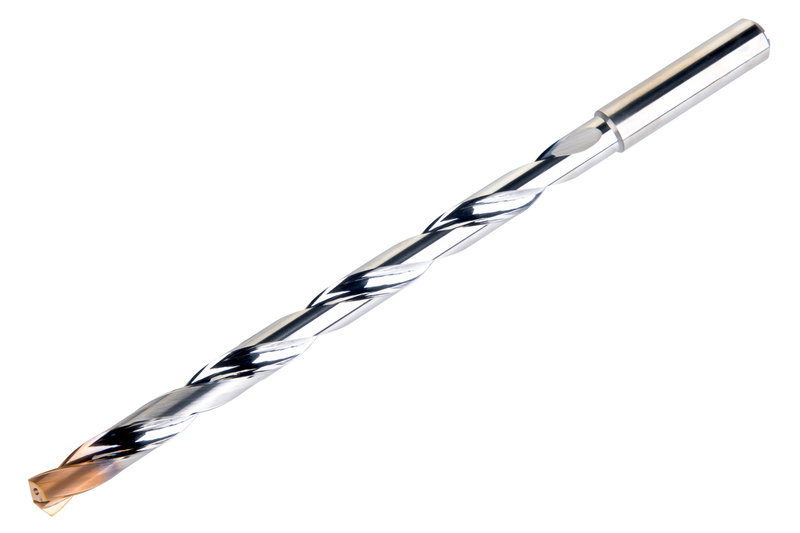

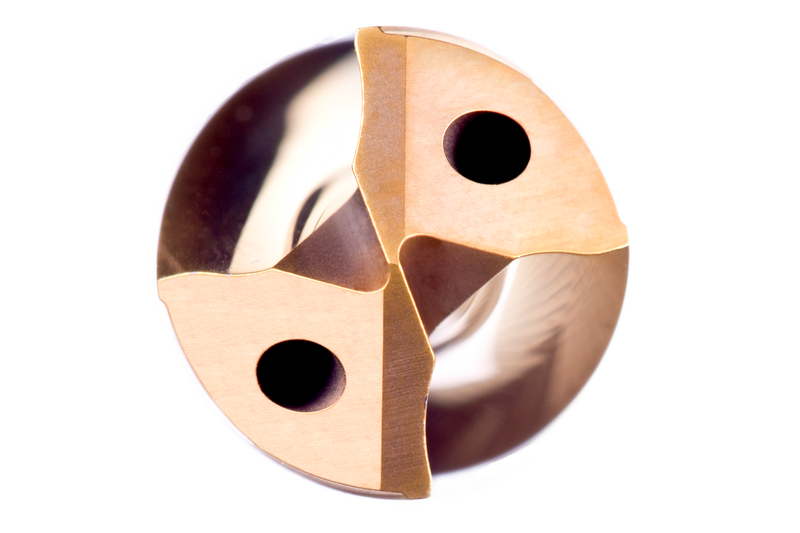

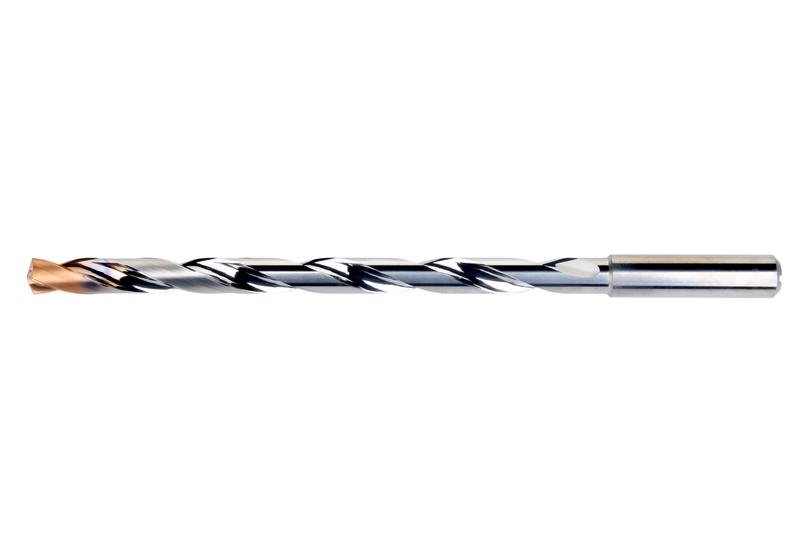

Foret haute performance à trou profond de 13/32 pouces de diamètre de coupe, doté d'un angle de pointe de 140° et d'une âme amincie optimisée, permettant un perçage jusqu'à 12xD sans débourrage. DCON MS 12 mm, LCF 158 mm et OAL 206 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes améliorent l'efficacité du refroidissement.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41213/32
Product Number8904058
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.406"
Cutting Diameter — mm (DC)10.32 mm
Cutting Diameter — Fractional13/32
Overall Length — in (OAL)8.11"
Overall Length — mm (OAL)206.0 mm
Flute Length — in (LCF)6.22"
Flute Length — mm (LCF)158.0 mm
Functional Length — in (LF)5.512"
Functional Length — mm (LF)140.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904058
EAN3603607351673
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41213/32 — 3D Model STP Download
RC41213/32 — 2D Model DXF Download
RC41213/32 — Line Drawing PDF Download
