UGC DOR8904066
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$652.14 CAD - $652.14 CAD
$652.14 CAD
$652.14 CAD - $652.14 CAD
$652.14 CAD

Vendu en lots de : 1

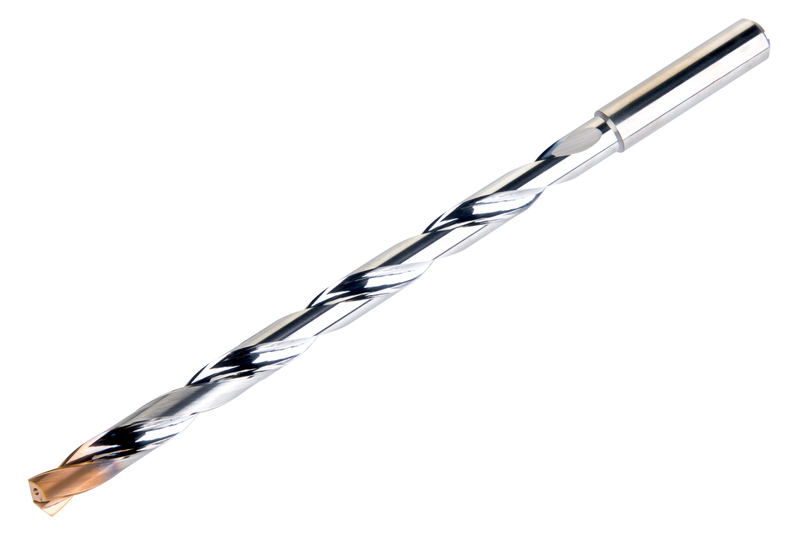

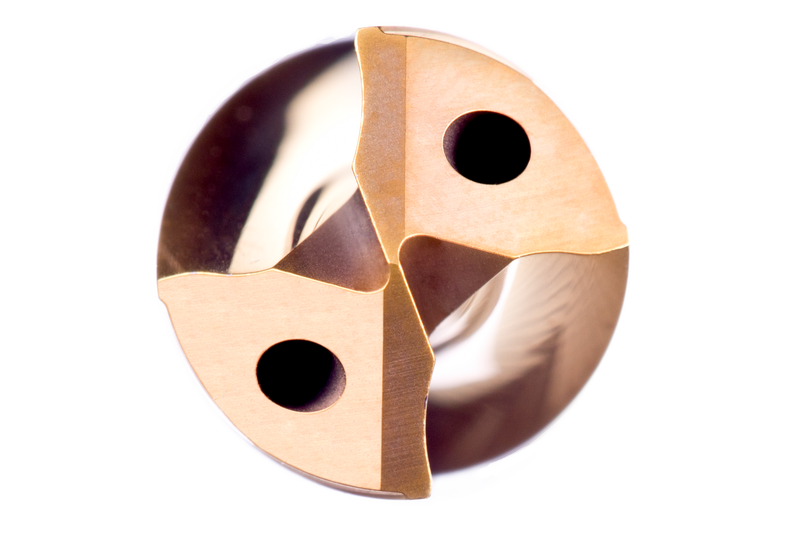

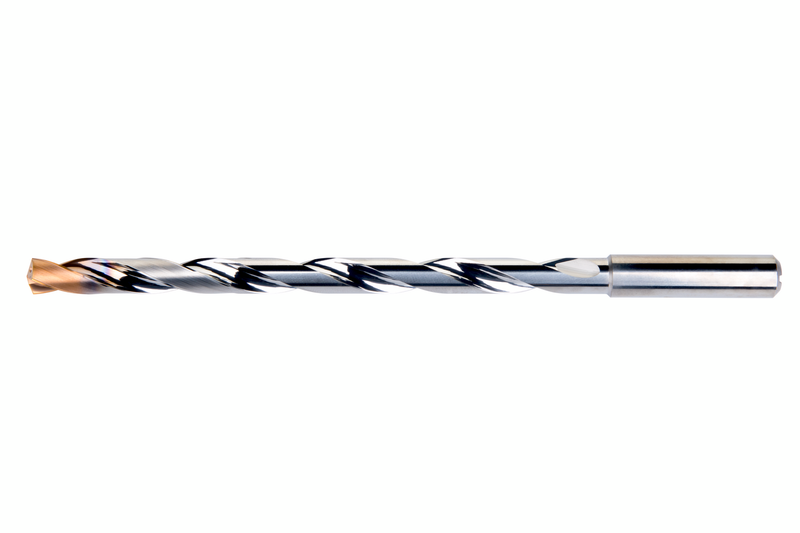

Foret à haut rendement pour trous profonds de diamètre de coupe 11,2 mm, doté d'un angle de pointe de 140° et d'une conception de noyau amincie optimisée, permettant un perçage jusqu'à 12xD sans débourrage. DCON MS 12 mm, LCF 158 mm et OAL 206 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux de lubrification internes assurent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41211.2
Product Number8904066
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.441"
Cutting Diameter — mm (DC)11.2 mm
Overall Length — in (OAL)8.11"
Overall Length — mm (OAL)206.0 mm
Flute Length — in (LCF)6.22"
Flute Length — mm (LCF)158.0 mm
Functional Length — in (LF)5.512"
Functional Length — mm (LF)140.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904066
EAN3603607351758
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41211.2 — 3D Model STP Download
RC41211.2 — 2D Model DXF Download
RC41211.2 — Line Drawing PDF Download
