UGC DOR8904074
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$891.79 CAD - $891.79 CAD
$891.79 CAD
$891.79 CAD - $891.79 CAD
$891.79 CAD

Vendu en lots de : 1

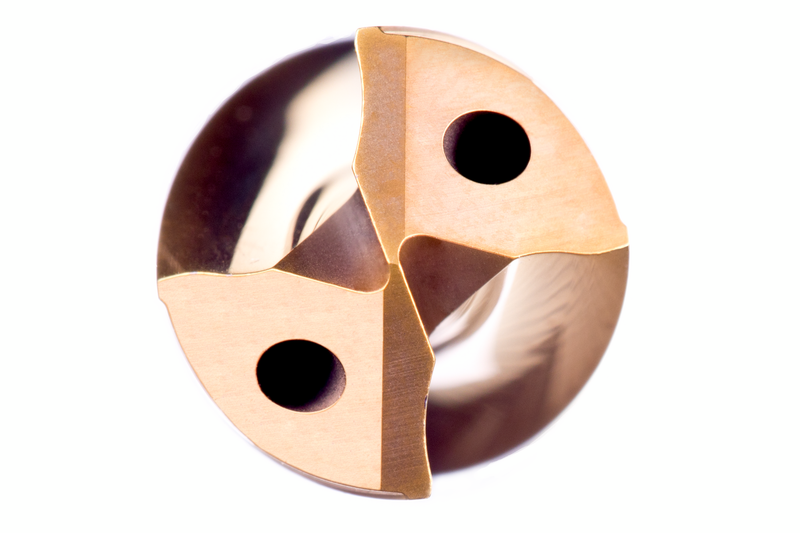

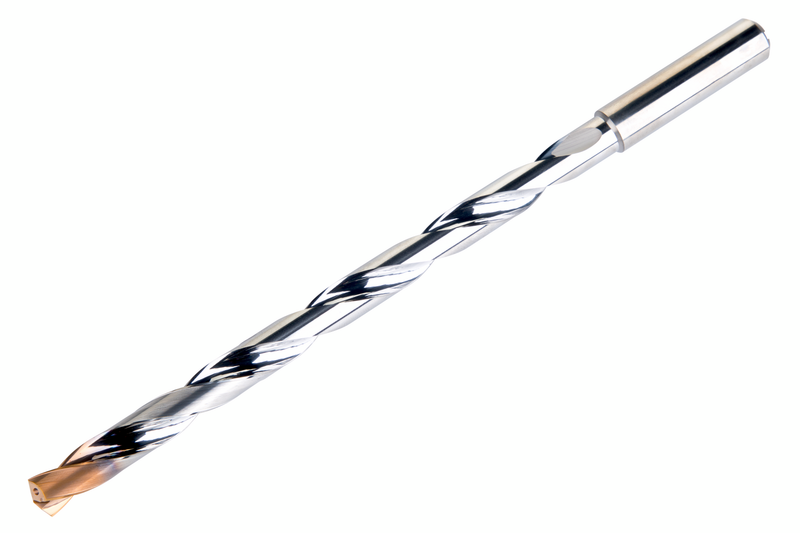

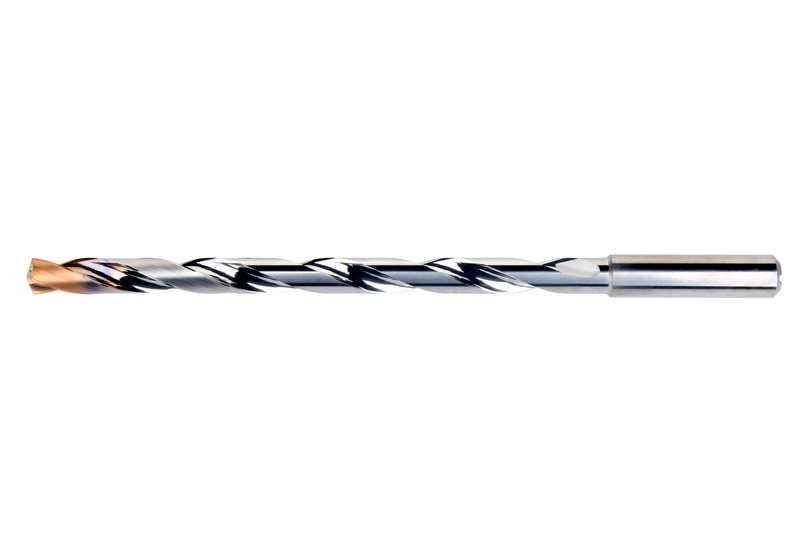

Foret haute performance pour trous profonds, de diamètre de coupe de 12,2 mm, doté d'un angle de pointe de 140° et d'un noyau aminci optimisé, permettant un perçage jusqu'à 12xD sans débourrage. DCON MS 14 mm, LCF 182 mm et OAL 230 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux de lubrification internes assurent une meilleure efficacité de refroidissement.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41212.2
Product Number8904074
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.48"
Cutting Diameter — mm (DC)12.2 mm
Overall Length — in (OAL)9.055"
Overall Length — mm (OAL)230.0 mm
Flute Length — in (LCF)7.165"
Flute Length — mm (LCF)182.0 mm
Functional Length — in (LF)6.614"
Functional Length — mm (LF)168.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904074
EAN3603607351833
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41212.2 — 3D Model STP Download
RC41212.2 — 2D Model DXF Download
RC41212.2 — Line Drawing PDF Download
