RC41218.0
RC41218.0
RC41218.0

RC41218.0

UGC DOR8904093
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,474.00 CAD - $1,474.00 CAD
$1,474.00 CAD
$1,474.00 CAD - $1,474.00 CAD
$1,474.00 CAD

Vendu en lots de : 1

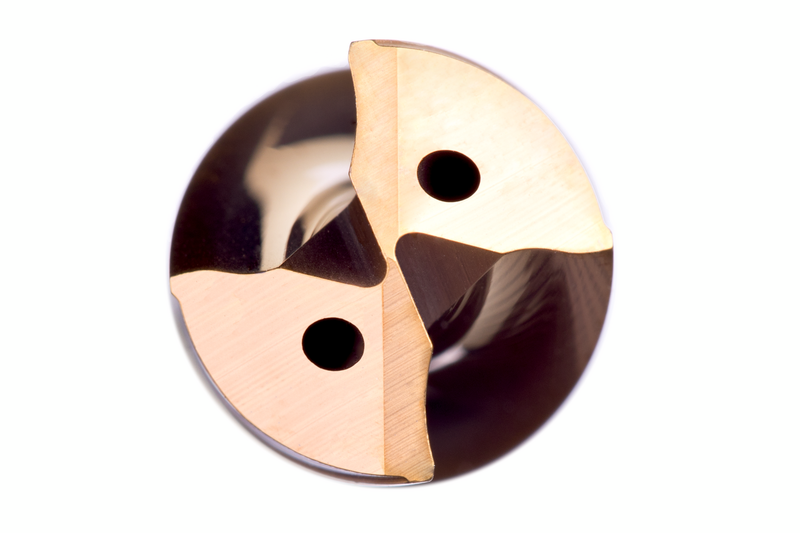

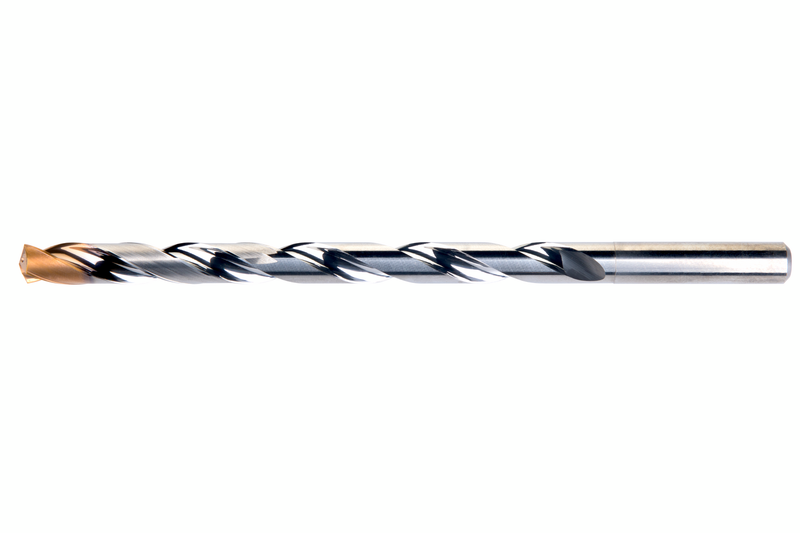

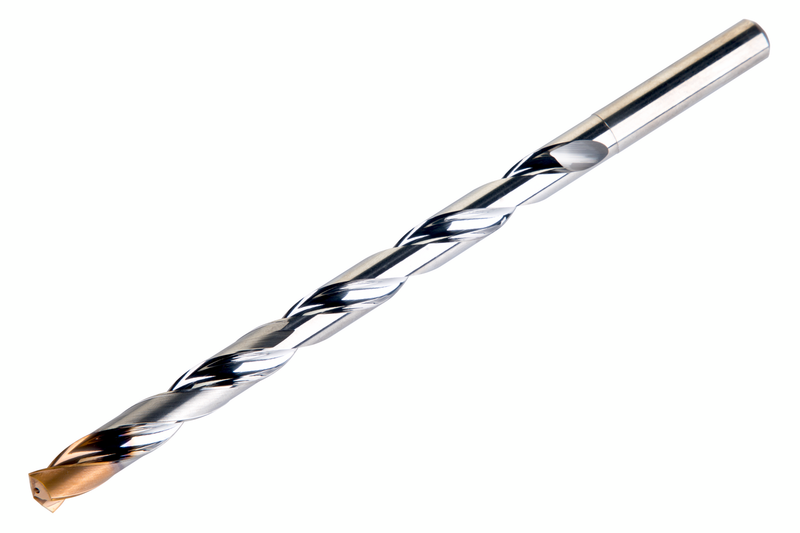

Foret haute performance pour trous profonds de diamètre de coupe de 18 mm, doté d'un angle de pointe de 140° et d'une âme amincie optimisée, permettant un perçage jusqu'à 12xD sans débourrage. Queue parallèle avec DCON MS de 18 mm, LCF de 234 mm et OAL de 285 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Des canaux d'arrosage internes assurent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41218.0
Product Number8904093
Product FamilyRC412
Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)11.22"
Overall Length — mm (OAL)285.0 mm
Flute Length — in (LCF)9.213"
Flute Length — mm (LCF)234.0 mm
Functional Length — in (LF)8.504"
Functional Length — mm (LF)216.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904093
EAN3603607352021
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41218.0 — 3D Model STP Download
RC41218.0 — 2D Model DXF Download
RC41218.0 — Line Drawing PDF Download
