RC4167.4
RC4167.4
RC4167.4

RC4167.4

UGC DOR8904119
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$485.57 CAD - $485.57 CAD
$485.57 CAD
$485.57 CAD - $485.57 CAD
$485.57 CAD

Vendu en lots de : 1

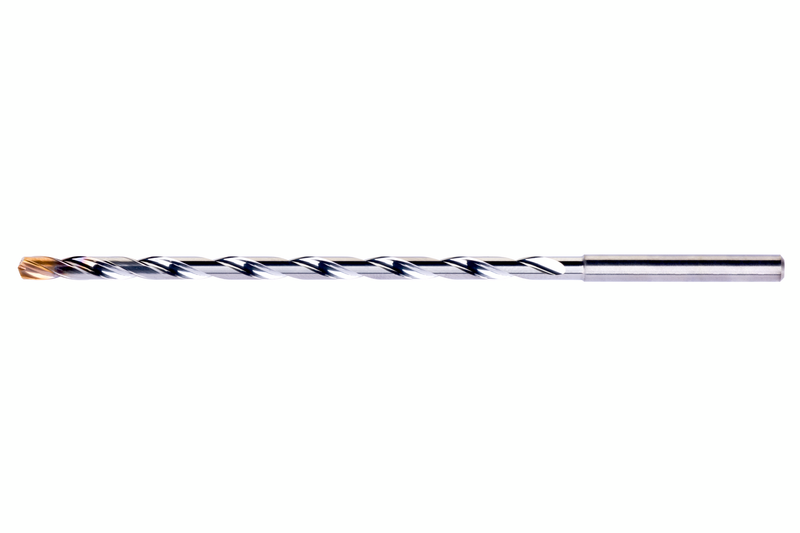

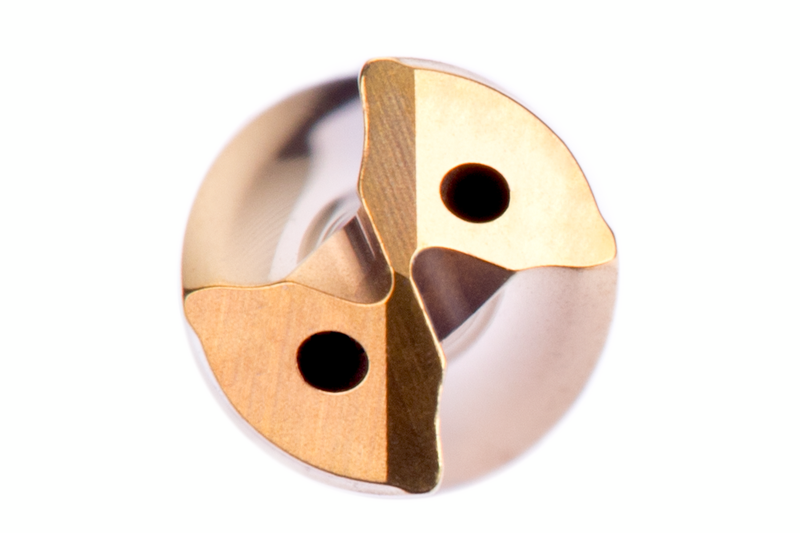

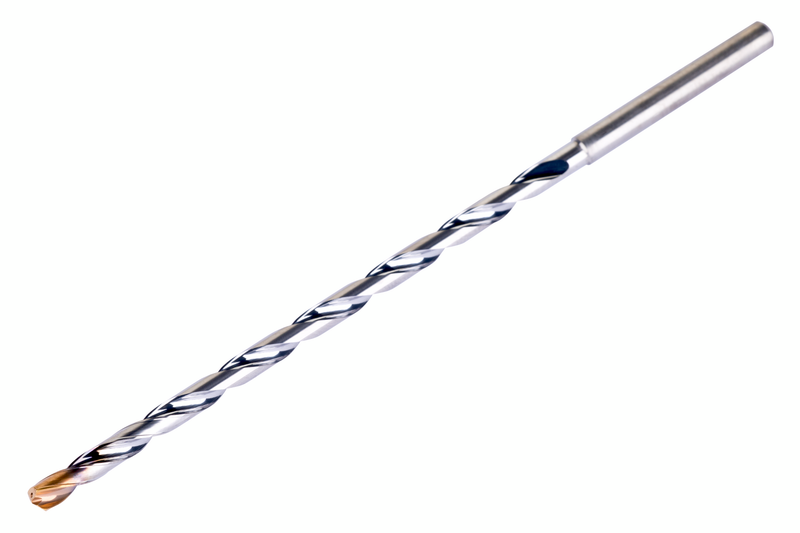

Foret pour trous profonds haute performance d'un diamètre de coupe de 7,4 mm, avec un angle de pointe de 140° et une âme amincie optimisée, permettant un perçage jusqu'à 16xD sans débourrage. DCON MS 8 mm, LCF 152 mm et OAL 192 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes améliorent l'efficacité du refroidissement.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4167.4
Product Number8904119
Product FamilyRC416
Dimensions
Cutting Diameter — in (DC)0.291"
Cutting Diameter — mm (DC)7.4 mm
Overall Length — in (OAL)7.559"
Overall Length — mm (OAL)192.0 mm
Flute Length — in (LCF)5.984"
Flute Length — mm (LCF)152.0 mm
Functional Length — in (LF)5.512"
Functional Length — mm (LF)140.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904119
EAN3603607352281
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4167.4 — 3D Model STP Download
RC4167.4 — 2D Model DXF Download
RC4167.4 — Line Drawing PDF Download
